Name: Raybestos 680544 Raybestos Specialty - Truck Brake Rotor
SKU: 680544
Price: 101.99 USD
Availability: InStock

RAYBESTOS part description

Product Description

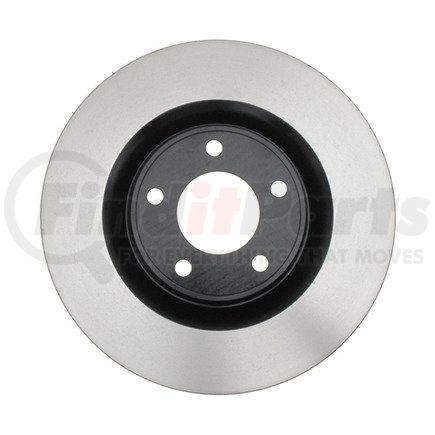

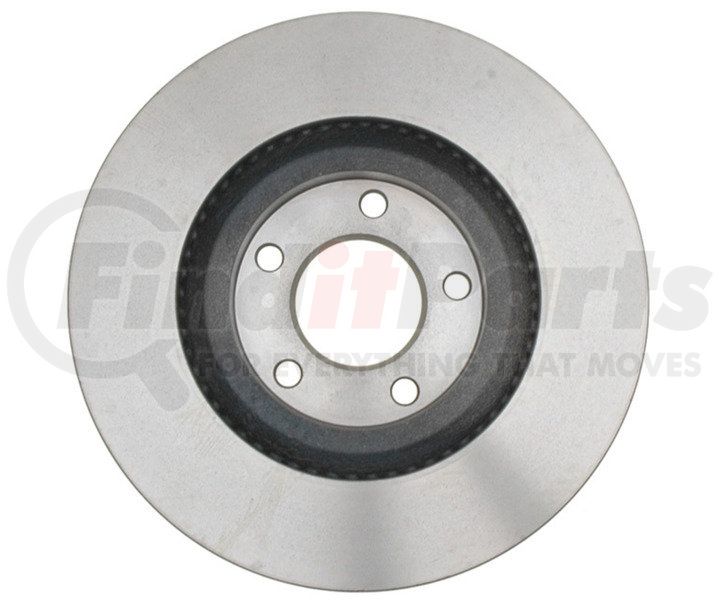

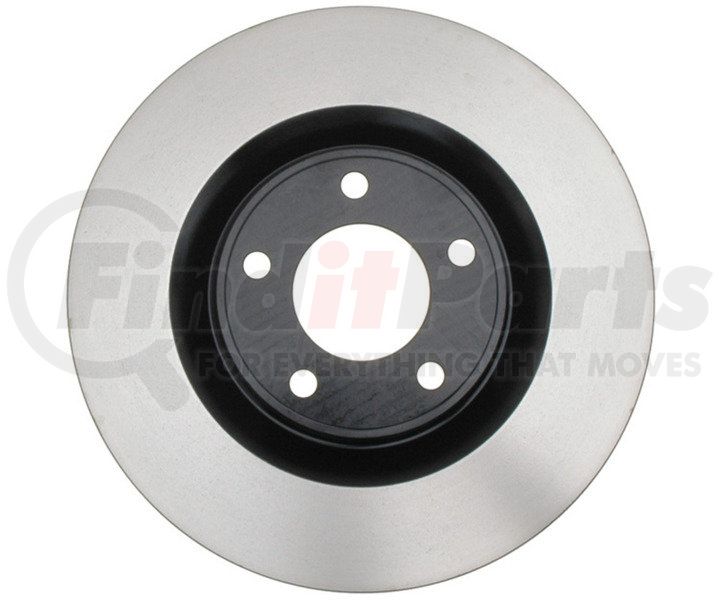

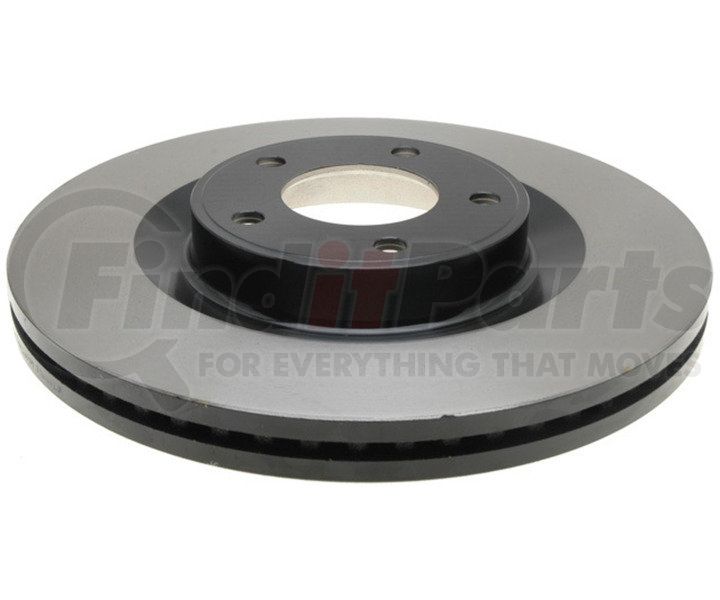

Raybestos Specialty - Truck Brake Rotor

Application Summary

2014-2007 Ford Edge Front, 2015-2007 Lincoln MKX Front

Product Attributes

ABS Tone Ring Included	No
Center Hole Diameter	2.83 IN
Center Hole Diameter	71.9 MM
9565	Conventional
9540	Non-Directional
Discard Thickness	1.024 IN
Discard Thickness	26 MM
Harmonize Code	8708.30.5030
Material	Cast Iron
Mounting Bolt Hole Circle Diameter	4.5 IN
Mounting Bolt Hole Circle Diameter	114.3 MM
Mounting Bolt Hole Diameter	0.546 IN
Mounting Bolt Hole Diameter	13.85 MM
Mounting Bolt Hole Quantity	5
Nominal Thickness	1.102 IN
Nominal Thickness	28 MM
Outside Diameter	12.598 IN
Outside Diameter	320 MM
Overall Height	1.9 IN
Overall Height	48.25 MM
Salability Restrictions	No
Solid Or Vented Type Rotor	Vented
Stud/Lug Hole Quantity	5
UNSPSC Code	25171715

Additional Information

Country of Origin (Primary)	CN
UPC	00829352541104

Part Interchanges

RAYBESTOS 680544 Cross Reference

We have 58 alternatives for the 680544 by RAYBESTOS:

Fits Vehicles

Lincoln MKX (2007-2015)
Ford Edge (2007-2014)
