(888) 312-8812 Login SignupRAYBESTOS 680344R Raybestos R-Line Brake Rotor
MSRP: $175.28
$9599
Save $79.29
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
RAYBESTOS 680344R Part Description
Manufacturer
Product Description

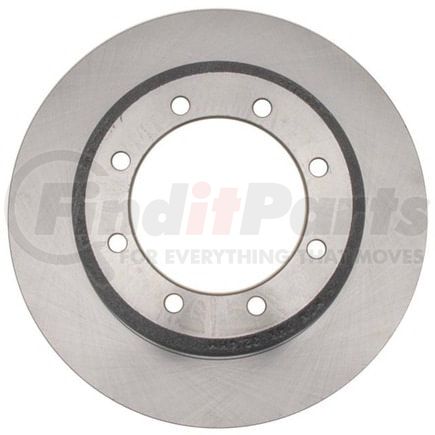

Raybestos R-Line Brake Rotor
Application Summary
2012-2005 Ford F-350 Super Duty Rear, 2012-2010 Ford F-450 Super Duty Rear
RAYBESTOS 680344R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 5.04 IN |
| Center Hole Diameter | 128 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.276 IN |
| Discard Thickness | 32.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 6.142 IN |
| Mounting Bolt Hole Circle Diameter | 156 MM |
| Mounting Bolt Hole Diameter | 0.507 IN |
| Mounting Bolt Hole Diameter | 12.9 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.345 IN |
| Nominal Thickness | 34.15 MM |
| Outside Diameter | 13.38 IN |
| Outside Diameter | 339.85 MM |
| Overall Height | 4.925 IN |
| Overall Height | 125.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00829352623930 |
RAYBESTOS 680344R Part Interchanges
| Brand | Part Number |
|---|---|
| Ford | 5C3Z2C026BA, 6C3Z2C026BA, BC3Z2C026A |
| Bosch | 20010469 |
| Brembo | 27421 |
| Wagner Brake | BD126276, BD126276E |
| Bendix | PRT5630, SDR5630 |
| PowerStop | AR85118EVC |
| BrakeBest | 20010455, 20010469, 680344, 680344FZN, 680344R, 680344RGS |
| Centric Parts | 120.65114, 120.65114CRY, 121.65114, 126.65114CSL, 126.65114CSR, 126.65114SL, 126.65114SR, 127.65114L, 127.65114R, 320.65114, 320.65114F |
| WABCO - Archived | PS126276 |
| AutoZone | 54136, 54136DG |
| Monroe Brakes | BD126276 |
| Advance Auto Parts | G09408SD, YH145630, YH145630C, YH145630P |
| Autopartsource | 492805 |
| Autoxtra | AX54136 |
| Casting Numbers | 211717-C, 326261 |
| Dura Corp | BR54136, BR5413602 |
| Winhere | 6620559 |
| Newtek Automotive USA | 54136 |
| Promax | 14-54136 |
| UAP | 54136 |
| Motorcraft | NBRR111 |
| Ultra Brake | 54426 |
| DuraGo | BR54136, BR5413602 |
| Qualis | 54136 |
RAYBESTOS 680344R Fits Vehicles
- Ford F-450 Super Duty (2010-2012)
- Ford F-350 Super Duty (2005-2012)
RAYBESTOS 680344R Cross References
We have 44 alternatives for the 680344R by RAYBESTOS:
- BRPK5615
- 829352623930
- BENDIX PRT5630
- BENDIX SDR5630
- BOSCH 20010469
- FORD 5C3Z2C026BA
- FORD 6C3Z2C026BA
- FORD BC3Z2C026A
- WABCO PS126276
- ADVANCE AUTO PARTS G09408SD
- ADVANCE AUTO PARTS YH145630
- ADVANCE AUTO PARTS YH145630C
- ADVANCE AUTO PARTS YH145630P
- AUTOPARTSOURCE 492805
- AUTOXTRA AX54136
- AUTOZONE 54136
- AUTOZONE 54136DG
- BRAKEBEST 20010455
- BRAKEBEST 20010469
- BRAKEBEST 680344
- BRAKEBEST 680344FZN
- BRAKEBEST 680344R
- BRAKEBEST 680344RGS
- BREMBO 27421
- CENTRIC 120.65114
- CENTRIC 120.65114CRY
- CENTRIC 121.65114
- CENTRIC 126.65114CSL
- CENTRIC 126.65114CSR
- CENTRIC 126.65114SL
- CENTRIC 126.65114SR
- CENTRIC 127.65114L
- CENTRIC 127.65114R
- CENTRIC 320.65114
- CENTRIC 320.65114F
- DURA CORP BR54136
- DURA CORP BR5413602
- MONROE BRAKES BD126276
- NEWTEK AUTOMOTIVE 54136
- POWERSTOP AR85118EVC
- PROMAX 14-54136
- UAP 54136
- WAGNER BRAKE BD126276
- WINHERE 6620559
