RAYBESTOS part description

Product Description

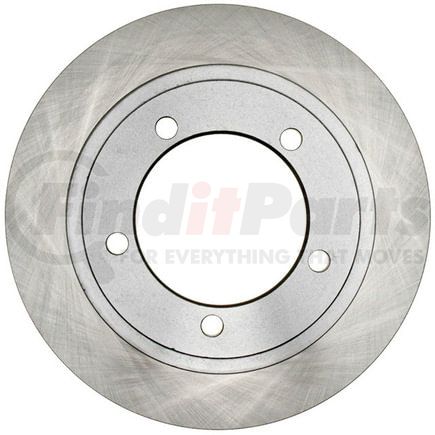

Raybestos R-Line Brake Rotor

Application Summary

2002-1997 GMC C7500 Topkick Front, 2002-1997 GMC C7500 Topkick Rear, 1996-1990 GMC C7000 Topkick Front, 1996-1990 GMC C7000 Topkick Rear, 1991-1980 Chevrolet B60 Front, 1991-1980 Chevrolet B60 Rear, 1991-1980 GMC B6000 Front

Product Attributes

Center Hole Diameter 5.404 IN
Center Hole Diameter 137.25 MM
9565 Conventional
Discard Thickness 1.225 IN
Discard Thickness 31.1 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 6.75 IN
Mounting Bolt Hole Circle Diameter 171.45 MM
Mounting Bolt Hole Diameter 0.66 IN
Mounting Bolt Hole Diameter 16.75 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 1.345 IN
Nominal Thickness 34.15 MM
Outside Diameter 14.75 IN
Outside Diameter 374.65 MM
Overall Height 3.8 IN
Overall Height 96.5 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
UPC 00829352367544

Part Interchanges

Fits Vehicles

  • GMC T6500 (1997-2002)
  • Isuzu FVR (1997-2002)
  • Isuzu FTR (1996-2002)
  • Isuzu FSR (1997-2002)
  • GMC P4500 (1988-1990)
  • GMC P6500 (1992-1996)
  • Chevrolet P6000 (1992-1996)
  • Chevrolet T6500 (1997-2002)
  • Chevrolet T7500 (1997-2002)
  • GMC T7500 (1997-2002)
  • GMC B7 (1993-2000)
  • GMC B6000 (1980-1991)
  • GMC C7500 Topkick (1997-2002)
  • GMC C6500 Topkick (1997-2002)
  • Chevrolet B7 (1993-2002)
  • Chevrolet B60 (1980-1991)
  • Chevrolet C7500 Kodiak (1997-2002)
  • Chevrolet C6500 Kodiak (1997-2002)
  • GMC C7000 Topkick (1990-1996)
  • GMC C6000 Topkick (1990-1996)
  • GMC C5000 Topkick (1990-1991)
  • Chevrolet C70 Kodiak (1990-1996)
  • Chevrolet C60 Kodiak (1990-1996)
  • Chevrolet C5500 Kodiak (1990-1991)
  • GMC C7000 (1983-1990)
  • GMC C6000 (1983-1990)
  • GMC C5000 (1983-1987, 1990)
  • Chevrolet C70 (1983-1990)
  • Chevrolet C50 (1983-1987, 1990)
  • Chevrolet C60 (1983-1990)
