RAYBESTOS 580031 Part Description
Manufacturer
Product Description

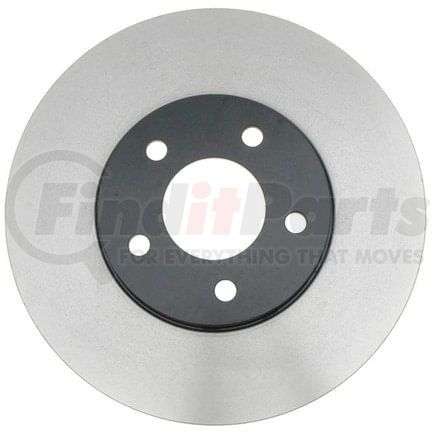

Raybestos Specialty - Truck Brake Rotor
Application Summary
2006-2002 Buick Rendezvous Front, 2004-2002 Chevrolet Venture Front, 2004-2002 Pontiac Montana Front, 2005-2001 Pontiac Aztek Front, 2004-2002 Oldsmobile Silhouette Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 580031 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.8 IN |
| Center Hole Diameter | 71.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.063 IN |
| Discard Thickness | 27 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.528 IN |
| Mounting Bolt Hole Circle Diameter | 115 MM |
| Mounting Bolt Hole Diameter | 0.557 IN |
| Mounting Bolt Hole Diameter | 14.15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.185 IN |
| Nominal Thickness | 30.1 MM |
| Outside Diameter | 11.815 IN |
| Outside Diameter | 300.1 MM |
| Overall Height | 2.04 IN |
| Overall Height | 51.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730912332 |
RAYBESTOS 580031 Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-877 |
| ADVANCE AUTO PARTS | 145343, YH145343, YH145343C, YH145343P |
| AUTOSPECIALTY | AR8269, AR8269E |
| AUTOXTRA | 125775, 80580031, AX55074 |
| AUTOZONE | 55074, 55074DG, DL55074 |
| BENDIX | 145343 |
| BOSCH | RBR55074 |
| BRAKEBEST | 580031, 580031R, 580031RGS, 81-125775, BD125775 |
| BREMBO | 09.B623.10, 27233 |
| Bridgestone | 7009802 |
| CENTRIC | 120.66047, 121.66047, 126.66047CSR, 126.66047SL, 126.66047SR, 320.66047F |
| CONTINENTAL-CONTITECH | CW30710 |
| Casting Numbers | 10434246, 211385-C, 325543 |
| Centric Parts | 120.66047, 121.66047, 126.66047CSR, 126.66047SL, 126.66047SR, 320.66047F |
| DURA CORP | BR55074 |
| DuraGo | BR55074 |
| GM | 10434246, 89047768 |
| GUARDIAN | 52-125775 |
| General Motors | 10434246, 89047768 |
| MIGHTY DISTRIBUTING SYSTEM | 55074 |
| MONROE BRAKES | BD125775 |
| NEOTEK | 107278GF |
| NEWTEK AUTOMOTIVE | 55074 |
| Newtek Automotive USA | 55074 |
| POWERSTOP | AR8269EVC |
| PROMAX | 14-55074 |
| PRONTO | BR55074 |
| QUALIS | 55074 |
| QUALITY BRAND | 55074, Q4066 |
| STANDARD ROTORS AND DRUMS | 55074 |
| THE UNIVERSAL GROUP | 101739 |
| TRUSTAR | 493185 |
| UAP | 55074 |
| Ultra Brake | 55877 |
| Universal | 101739 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51388 |
| WAGNER | BD125775E, BD125775 |
| WAGNER BRAKE | BD125775 |
| WINHERE | 662897 |
| WORLDPAC | 1427-732077 |
| Wagner Brake | BD125775E |
RAYBESTOS 580031 Fits Vehicles
- Pontiac Montana (2002-2004)
- Pontiac Aztek (2001-2005)
- Oldsmobile Silhouette (2002-2004)
- Chevrolet Venture (2002-2004)
- Buick Rendezvous (2002-2006)
