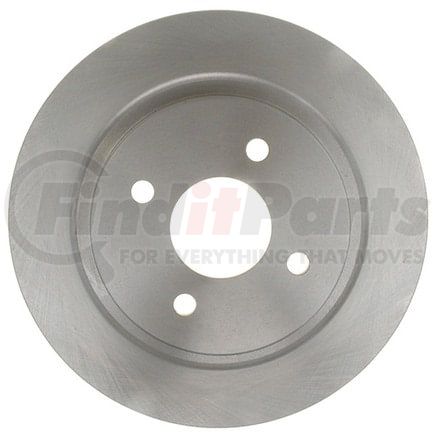

Name: Raybestos 680166R Raybestos R-Line Brake Rotor
SKU: 680166r
Price: 64.49 USD
Availability: InStock

RAYBESTOS part description

Product Description

Raybestos R-Line Brake Rotor

Application Summary

2005-2003 Lincoln Aviator Front

Product Attributes

ABS Tone Ring Included	No
Center Hole Diameter	3.228 IN
Center Hole Diameter	82 MM
9565	Conventional
Discard Thickness	1.043 IN
Discard Thickness	26.5 MM
Harmonize Code	8708.30.5030
Mounting Bolt Hole Circle Diameter	4.5 IN
Mounting Bolt Hole Circle Diameter	114.3 MM
Mounting Bolt Hole Diameter	4.5 IN
Mounting Bolt Hole Diameter	114.3 MM
Mounting Bolt Hole Quantity	5
Nominal Thickness	1.102 IN
Nominal Thickness	28 MM
Outside Diameter	13 IN
Outside Diameter	330.2 MM
Overall Height	2.29 IN
Overall Height	58.15 MM
Salability Restrictions	No
Solid Or Vented Type Rotor	Vented
Stud/Lug Hole Quantity	5
UNSPSC Code	25171715

Additional Information

Country of Origin (Primary)	CN
UPC	00829352465431

Part Interchanges

RAYBESTOS 680166R Cross Reference

We have 39 alternatives for the 680166R by RAYBESTOS:

Fits Vehicles

Lincoln Aviator (2003-2005)

California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
