(888) 312-8812 Login SignupRAYBESTOS 680182R Raybestos R-Line Brake Rotor
MSRP: $123.18
$7499
Save $48.19
Limited availability at this price!
In Stock
Get it by Friday, Feb 20
RAYBESTOS 680182R Part Description
Manufacturer
Product Description

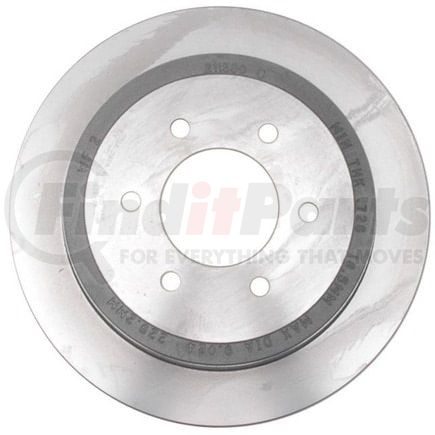

Raybestos R-Line Brake Rotor
Application Summary
2011-2004 Ford F-150 Rear, 2008-2006 Lincoln Mark LT Rear, 2010-2004 Ford Lobo Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 680182R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.55 IN |
| Center Hole Diameter | 90.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.728 IN |
| Discard Thickness | 18.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.315 IN |
| Mounting Bolt Hole Circle Diameter | 135 MM |
| Mounting Bolt Hole Diameter | 0.604 IN |
| Mounting Bolt Hole Diameter | 15.35 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20 MM |
| Outside Diameter | 13.7 IN |
| Outside Diameter | 348 MM |
| Overall Height | 3.39 IN |
| Overall Height | 86.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352398463 |
RAYBESTOS 680182R Cross References
RAYBESTOS 680182R Fits Vehicles
- Ford F-150 Heritage (2004)
- Ford Lobo (2004-2010)
- Lincoln Mark LT (2006-2008)
- Ford F-150 (2004-2011)
