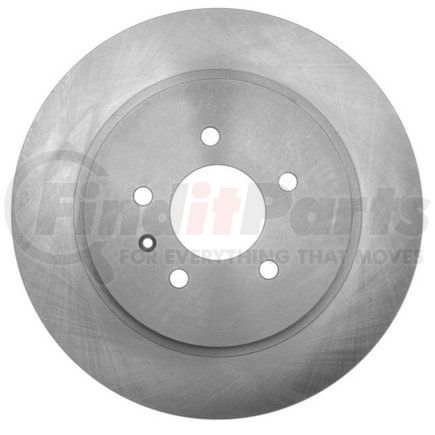

Raybestos 580364R - Raybestos R-Line Brake Rotor
$10599
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
RAYBESTOS part description
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2007-2006 Cadillac CTS Rear
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.78 IN |
| Center Hole Diameter | 70.6 MM |
| 9565 | Drum-In-Hat |
| 9540 | Non-Directional |
| Discard Thickness | 0.945 IN |
| Discard Thickness | 24 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.528 IN |
| Mounting Bolt Hole Circle Diameter | 115 MM |
| Mounting Bolt Hole Diameter | 0.511 IN |
| Mounting Bolt Hole Diameter | 13 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.025 IN |
| Nominal Thickness | 26.05 MM |
| Outside Diameter | 12.6 IN |
| Outside Diameter | 320.05 MM |
| Overall Height | 1.89 IN |
| Overall Height | 48 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00829352598986 |
Part Interchanges
- General Motors 15235140
- General Motors 25737788
- Mighty Distributing System 55113
- Wagner Brake BD126284
- Wagner Brake BD126284E
- ACDelco 177-0930
- Bendix PRT5664
- BrakeBest 580364
- BrakeBest 580364R
- BrakeBest 580364RGS
- Centric Parts 120.62088
- Centric Parts 121.62088
- Centric Parts 125.62088
- Centric Parts 125.62088CRY
- Centric Parts 126.62088CSL
- Centric Parts 126.62088CSR
- Centric Parts 126.62088SL
- Centric Parts 126.62088SR
- Centric Parts 127.62088L
- Centric Parts 127.62088R
- Centric Parts 128.62088L
- Centric Parts 128.62088R
- Centric Parts 320.62088C
- Advance Auto Parts YH145607
- Autoxtra AX900372
- Casting Numbers 211656-C
- Casting Numbers 326325
- Dura Corp BR55113
- Dura Corp BR900372
- Dura Corp BR90037202
- Qualis 41214
- Winhere 6620553
- Newtek Automotive USA 55113
- Pep Boys 41214G
- Promax 14-55113
- UAP 55113
- DuraGo 60428
- DuraGo 900372
- DuraGo BR60428
- DuraGo BR900372
- Qualis 41254
RAYBESTOS 580364R Cross Reference
We have 34 alternatives for the 580364R by RAYBESTOS:
- ACDELCO 177-0930
- BENDIX PRT5664
- GM 15235140
- GM 25737788
- ADVANCE AUTO PARTS YH145607
- AUTOXTRA AX900372
- BRAKEBEST 580364
- BRAKEBEST 580364R
- BRAKEBEST 580364RGS
- CENTRIC 120.62088
- CENTRIC 121.62088
- CENTRIC 125.62088
- CENTRIC 125.62088CRY
- CENTRIC 126.62088CSL
- CENTRIC 126.62088CSR
- CENTRIC 126.62088SL
- CENTRIC 126.62088SR
- CENTRIC 127.62088L
- CENTRIC 127.62088R
- CENTRIC 128.62088L
- CENTRIC 128.62088R
- CENTRIC 320.62088C
- DURA CORP BR55113
- DURA CORP BR900372
- DURA CORP BR90037202
- MIGHTY DISTRIBUTING SYSTEM 55113
- NEWTEK AUTOMOTIVE 55113
- PEP BOYS 41214G
- PROMAX 14-55113
- QUALIS 41214
- UAP 55113
- WAGNER BRAKE BD126284
- WAGNER BRAKE BD126284E
- WINHERE 6620553
Fits Vehicles
- Cadillac CTS (2006-2007)
