Delphi TC8386 - Control Arm and Ball Joint Assembly
$11699
5 day lead time
limited availability at this price!
. Learn more
DELPHI part description
Product Description

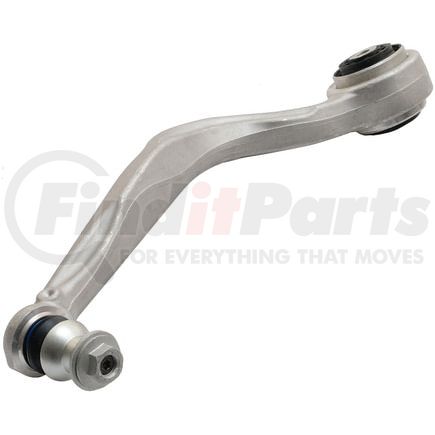

Control Arm and Ball Joint Assembly
Product Attributes
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 106.80 MM |
| Control Arm Maximum Width | 4.205 IN |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 14.50 MM |
| Ball Joint Stud Length | 26.50 MM |
| Ball Joint Stud Length | 1.043 IN |
| Control Arm Maximum Length | 526.00 MM |
| Control Arm Maximum Length | 20.709 IN |
| Mounting Hole Diameter | 14.20 MM |
| Mounting Hole Diameter | 0.559 IN |
| 9532 | 446.50 MM |
| 9532 | 17.579 IN |
| Bushing Inside Diameter | 14.20 MM |
| Bushing Length | 80.00 MM |
| Bushing Length | 3.150 IN |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.571 IN |
| Bushing Inside Diameter | 0.559 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604387641 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Mercedes-Benz GLC350e (2018)
- Mercedes-Benz GLC300 (2016-2019)
