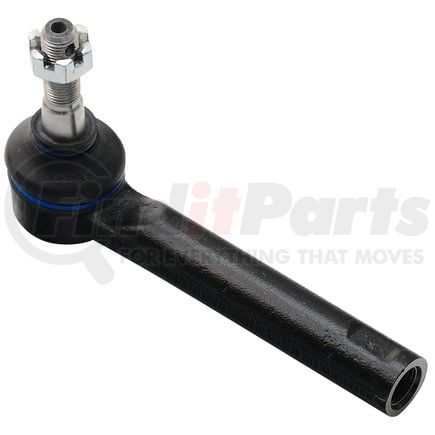

Name: Delphi TA3580 Tie Rod End
SKU: ta3580
Price: 24.99 USD
Availability: InStock

DELPHI part description

Tie Rod End

Product Description

Tie Rod End

Product Attributes

Position(s)	Outer
Length	157.50 MM
Color	Black
End 1 Gender	Female
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	45 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	120.00 MM
End 2 Thread Diameter	4.724 IN
Height	84.30 MM
Grade Type	Standard
Housing Material	Steel
Adjustable	Yes
Greasable	No
Weight	1.77 lb
Cone Outside Diameter	13.05 MM
662	0.514 IN
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Grade	Premium
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
End 1 Thread Pitch	1.5 MM
Length Stud Center to End	139.00 MM
Length Stud Center to End	5.472 IN
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	14.00 MM
End 1 Thread Diameter	0.551 IN
Shank Length	13.05 MM
Stud Length	13.05 MM
Boot Color	Black
Shank Length	0.514 IN
Stud Length	0.514 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708948000
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708947550
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604387474
VMRS Code	015004045
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Subaru Impreza (2017-2022)
