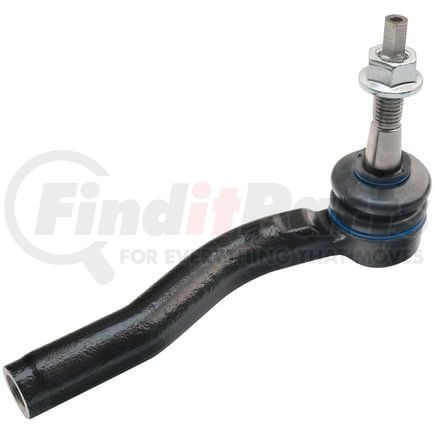

Name: Delphi TA3500 Tie Rod End
SKU: ta3500
Price: 103.99 USD
Availability: InStock

DELPHI part description

Tie Rod End

Product Description

Tie Rod End

Product Attributes

Position(s)	Front Right Outer
Length	214.75 MM
Color	Black
End 1 Gender	Female
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	53.4 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	14.00 MM
End 2 Thread Diameter	0.551 IN
Height	123.20 MM
Grade Type	Standard
Housing Material	Steel
36	1.020 IN
Tube Diameter	26.00 MM
Adjustable	No
Greasable	No
Weight	2.42 lb
Cone Outside Diameter	14.20 MM
662	0.559 IN
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Grade	Premium
Stud Type	Threaded
Head Drive Type	Hex
End 2 Thread Pitch	2 MM
End 1 Thread Pitch	1.5 MM
Length Stud Center to End	192.00 MM
Length Stud Center to End	7.559 IN
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	16.00 MM
End 1 Thread Diameter	0.630 IN
Shank Length	14.20 MM
Stud Length	14.20 MM
Boot Color	Black
Shank Length	0.559 IN
Stud Length	0.559 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708948000
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708947550
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604387429
VMRS Code	015004019
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Cadillac Escalade (2021-2022)
Cadillac Escalade ESV (2021-2022)
GMC Yukon (2021-2022)
GMC Yukon XL (2021-2022)
Chevrolet Suburban (2021-2022)
Chevrolet Tahoe (2021-2022)
GMC Sierra 1500 (2019-2022)
Chevrolet Silverado 1500 (2019-2022)

Delphi® is committed to making a difference. With a global network of more than 2,400 service centers and a presence in over 150 countries, Delphi Technologies delivers OE-specific aftermarket parts and software solutions for a wide range of passenger vehicles, light and medium commercial vehicles, heavy-duty truck and commercial vehicles, as well as agricultural, marine, and industrial equipment. The company’s comprehensive product portfolio includes components for diesel fuel systems, engine management, gasoline fuel systems, vehicle electronics, and maintenance solutions. Delphi Technologies takes pride in its state-of-the-art manufacturing facility as well as OE-level diagnostic and test equipment that produces OE-quality aftermarket components to make vehicles and trucks run cleaner, drive better, and last further.
