DELPHI part description

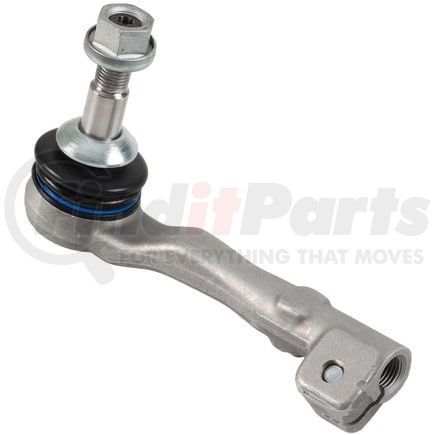

Tie Rod End

Product Description

Tie Rod End

Product Attributes

Position(s) Front Left Outer
Color Gray
End 1 Gender Male
End 2 Gender Female
Pre-Greased Yes
Grease Fitting Included No
Dust Boot Included Yes
Type Bent
Mounting Hardware Included Yes
End 2 Thread Diameter 14.00 MM
End 2 Thread Diameter 0.551 IN
Housing Material Steel
Adjustable No
Greasable No
Weight 1.41 lb
Cone Outside Diameter 16.20 MM
662 0.638 IN
Bearing Material Plastic
End 1 Thread Direction Clockwise (Right)
End 2 Thread Direction Clockwise (Right)
Stud Type Threaded
Head Drive Type Star
End 2 Thread Pitch 1.5 MM
End 1 Thread Pitch 1.5 MM
Length Stud Center to End 162.50 MM
Length Stud Center to End 6.398 IN
Dust Boot Material Rubber
Tie Rod Material Steel
End 1 Thread Diameter 14.00 MM
End 1 Thread Diameter 0.551 IN
Shank Length 16.20 MM
Stud Length 16.20 MM
Grade Type Standard
Boot Color Black
Grade Premium
Shank Length 0.638 IN
Stud Length 0.638 IN

Additional Information

Harmonized Tariff Code (Schedule B) 8708948000
Country of Origin (Primary) TR
Harmonized Tariff Code (HTS) 8708947550
Warranty Special Limited Lifetime
Warranty Special UOM LF
UPC 00689604387382
VMRS Code 015004020
UNSPSC 25174205

Part Interchanges

Fits Vehicles

  • BMW X4 (2019-2021)
  • BMW X3 (2018-2022)

Delphi® is committed to making a difference. With a global network of more than 2,400 service centers and a presence in over 150 countries, Delphi Technologies delivers OE-specific aftermarket parts and software solutions for a wide range of passenger vehicles, light and medium commercial vehicles, heavy-duty truck and commercial vehicles, as well as agricultural, marine, and industrial equipment. The company’s comprehensive product portfolio includes components for diesel fuel systems, engine management, gasoline fuel systems, vehicle electronics, and maintenance solutions. Delphi Technologies takes pride in its state-of-the-art manufacturing facility as well as OE-level diagnostic and test equipment that produces OE-quality aftermarket components to make vehicles and trucks run cleaner, drive better, and last further.
