(888) 312-8812 Login SignupRAYBESTOS 680106R Raybestos R-Line Brake Rotor
MSRP: $108.03
$6399
Save $44.04
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 18
RAYBESTOS 680106R Part Description
Manufacturer
Product Description

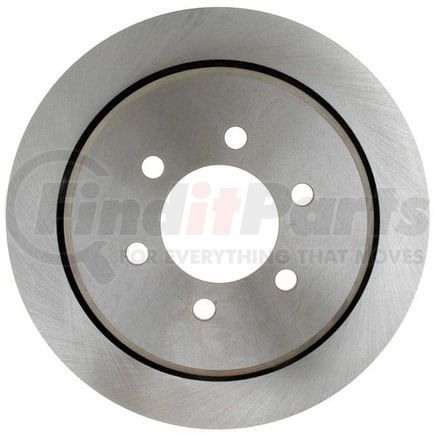

Raybestos R-Line Brake Rotor
Application Summary
2006-2003 Ford Expedition Rear, 2006-2003 Lincoln Navigator Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 680106R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.54 IN |
| Center Hole Diameter | 89.9 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.748 IN |
| Discard Thickness | 19 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.315 IN |
| Mounting Bolt Hole Circle Diameter | 135 MM |
| Mounting Bolt Hole Diameter | 0.636 IN |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.865 IN |
| Nominal Thickness | 21.95 MM |
| Outside Diameter | 13.465 IN |
| Outside Diameter | 342 MM |
| Overall Height | 2.025 IN |
| Overall Height | 51.45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352366295 |
RAYBESTOS 680106R Cross References
RAYBESTOS 680106R Fits Vehicles
- Lincoln Navigator (2002-2006)
- Ford Expedition (2002-2006)
