(888) 312-8812 Login SignupRAYBESTOS 96378R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96378R Part Description
Manufacturer
Product Description

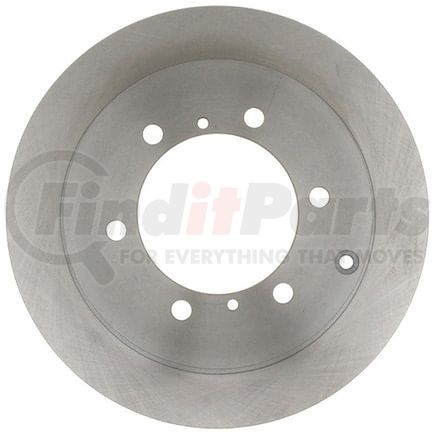

Raybestos R-Line Brake Rotor
Application Summary
2004-1997 Mitsubishi Montero Sport Rear, 2000-1990 Mitsubishi Montero Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96378R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.253 IN |
| Center Hole Diameter | 108.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.646 IN |
| Discard Thickness | 16.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.492 IN |
| Mounting Bolt Hole Diameter | 12.5 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.71 IN |
| Nominal Thickness | 18.05 MM |
| Outside Diameter | 12.4 IN |
| Outside Diameter | 314.95 MM |
| Overall Height | 3.315 IN |
| Overall Height | 84.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352371152 |
RAYBESTOS 96378R Cross References
RAYBESTOS 96378R Fits Vehicles
- Mitsubishi Montero Sport (1997-2004)
- Mitsubishi Montero (1990-2000)
RAYBESTOS 96378R Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 96378R Questions & Answers
No questions yet
Be the first to ask a question about this product!
