(888) 312-8812 Login SignupRAYBESTOS 980127R Raybestos R-Line Brake Rotor
MSRP: $76.88
$4349
Save $33.39
Limited availability at this price!
In Stock
Get it by Friday, Feb 6
RAYBESTOS 980127R Part Description
Manufacturer
Product Description

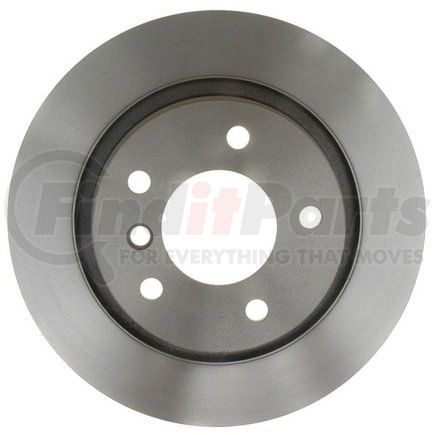

Raybestos R-Line Brake Rotor
Application Summary
2005-2001 BMW 325i Rear, 2006-2001 BMW 325Ci Rear, 2000-1996 BMW 328i Rear, 2001-2000 BMW 323i Rear, 2000 BMW 323Ci Rear, 1998-1996 BMW 328is Rear, 2000 BMW 328Ci Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980127R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.95 IN |
| Center Hole Diameter | 74.95 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.685 IN |
| Discard Thickness | 17.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.72 IN |
| Mounting Bolt Hole Circle Diameter | 119.9 MM |
| Mounting Bolt Hole Diameter | 0.57 IN |
| Mounting Bolt Hole Diameter | 14.5 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.748 IN |
| Nominal Thickness | 19 MM |
| Outside Diameter | 11.575 IN |
| Outside Diameter | 294 MM |
| Overall Height | 2.343 IN |
| Overall Height | 59.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352467497 |
RAYBESTOS 980127R Cross References
RAYBESTOS 980127R Fits Vehicles
- BMW 328is (1996-1998)
- BMW 328i (1996-2000)
- BMW 328Ci (2000)
- BMW 325i (2001-2005)
- BMW 325Ci (2001-2006)
- BMW 323i (1999-2001)
- BMW 323Ci (2000)
