RAYBESTOS 56641R Raybestos R-Line Brake Rotor

★★★★★ (0) Write a Review

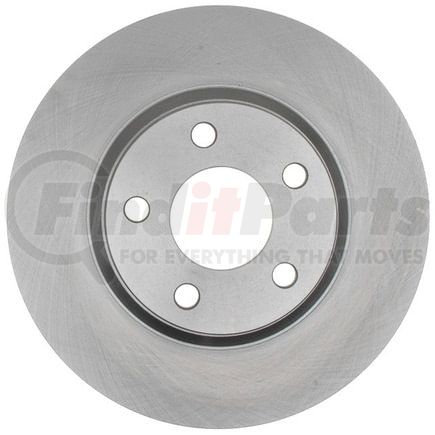

56641R by RAYBESTOS - Raybestos R-Line Brake Rotor
RAYBESTOS

MSRP: $88.28

$58.99

Save $29.29

Limited availability at this price!

In Stock

Get it by Monday, Feb 2
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

RAYBESTOS 56641R Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos R-Line Brake Rotor

Application Summary

2005-2000 Buick LeSabre Front, 2005-2000 Chevrolet Impala Front, 2005-1997 Cadillac DeVille Front, 2005-2000 Chevrolet Monte Carlo Front, 2004-1997 Buick Park Avenue Front, 2002-1998 Chevrolet Camaro Front

RAYBESTOS 56641R Specifications

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.78 IN
Center Hole Diameter 70.6 MM
Conventional Or Drum-In-Hat Type Rotor Conventional
Directional or Non-Directional Brake Surface Non-Directional
Discard Thickness 1.209 IN
Discard Thickness 30.7 MM
Harmonize Code 8708.30.5030
Material Cast Iron
Mounting Bolt Hole Circle Diameter 4.646 IN
Mounting Bolt Hole Circle Diameter 118 MM
Mounting Bolt Hole Diameter 0.623 IN
Mounting Bolt Hole Diameter 15.8 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 1.27 IN
Nominal Thickness 32.25 MM
Outside Diameter 11.92 IN
Outside Diameter 302.75 MM
Overall Height 2.04 IN
Overall Height 51.8 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
UPC 00829352364345

RAYBESTOS 56641R Cross References

BrandPart Number
85956413, 829352364345
ACDELCO177-856, 177-874
ADVANCE AUTO PARTS145150, N1000414560APO, YH145150, YH145150C, YH145150P
AMERICAN REMANUFACTURED789-36055, 89-36055
API1407-24996
AUTOPARTSOURCE593150
AUTOSPECIALTYAR8255, AR8255E
AUTOXTRA8056641
AUTOZONE55034, 55034B, 55034DG, 55034DL, DL55034
AutoxtraAX55034
BENDIX145150
BOSCHRBR55034
BRAKE HEADQUARTERSBR55527
BRAKEBEST56641, 56641FZN, 56641R, 56641RGS, 81-125618, BD125618
BREMBO09.8456.85, 09.A052.10, 09.A052.11, 27181, 27249
CALIFORNIA DRUM & ROTOR125504
CENTRIC120.62055, 120.62055CRY, 121.62055, 125.62055, 125.62055CRY, 126.62055CSL, 126.62055CSR, 126.62055SL, 126.62055SR, 127.62055CL, 127.62055CR, 127.62055L, 127.62055R, 128.62055CL, 128.62055CR, 128.62055L, 128.62055R, 227.62055L, 227.62055R, 228.62055DL, 228.62055DR, 320.62055, 320.62055F, 321.62055
COMMAND AUTOMOTIVE107236
CONTINENTAL-CONTITECHCW32702
Casting Numbers325276, 5171, 550341
Centric Parts120.62055, 120.62055CRY, 121.62055, 125.62055, 125.62055CRY, 126.62055CSL, 126.62055CSR, 126.62055SL, 126.62055SR, 127.62055CL, 127.62055CR, 127.62055L, 127.62055R, 128.62055CL, 128.62055CR, 128.62055L, 128.62055R, 227.62055L, 227.62055R, 228.62055DL, 228.62055DR, 320.62055, 320.62055F, 321.62055
DELPHIRB500
DURA CORPBR55034, BR5503402
DuraGoBR55034, BR5503402
EUROROTOR55134
FORMULA BLUE HYDRAULIC BRAKE PARTSE12567060
GM18021015, 18026591, 18060230, 18060240, 18060640, 19152695, 19202731
GREN684702
GUARDIAN52-125504, 52-125618
General Motors18021015, 18026591, 18060230, 18060240, 18060640, 19152695, 19202731
MAGMA PRODUCTSPMR223058
MIDASBR2019
MIGHTY DISTRIBUTING SYSTEM55034
MONROE BRAKESBD125618
NEWTEK AUTOMOTIVE55034
Newtek Automotive USA55034
OmnicraftQBRR108
PERFORMANCE FRICTION303.052.01
POWERSTOPAR8255EVC
PROMAX14-55034
QUALIS55034
QUALITEE INTERNATIONAL64-93-055
QUALITY BRAND55034, Q4140
STANDARD ROTORS AND DRUMS55034
THE UNIVERSAL GROUP101703
TRUSTAR493055, 493150, R93055
UAP2055034, 55034, 55048
Universal101703
VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURINGX51209
WABCOPS125618
WABCO - ArchivedPS125618
WAGNERBD125618E, BD126257, BD126257E, BD125618
WAGNER BRAKEBD125504, BD125618, BD125618E
WINHERE6620976, YH2416

RAYBESTOS 56641R Fits Vehicles

  • Pontiac Firebird (1998-2002)
  • Pontiac Bonneville (2000-2005)
  • Oldsmobile Intrigue (1998-1999)
  • Oldsmobile Aurora (1997-1999, 2001-2003)
  • Chevrolet Monte Carlo (2000-2005)
  • Chevrolet Impala (2000-2005)
  • Chevrolet Camaro (1998-2002)
  • Cadillac Seville (1997-2002, 2004)
  • Cadillac Eldorado (1997-2002)
  • Cadillac DeVille (1997-2005)
  • Buick Riviera (1997-1999)
  • Buick Park Avenue (1997-2004)
  • Buick LeSabre (2000-2005)
