RAYBESTOS part description

Product Description

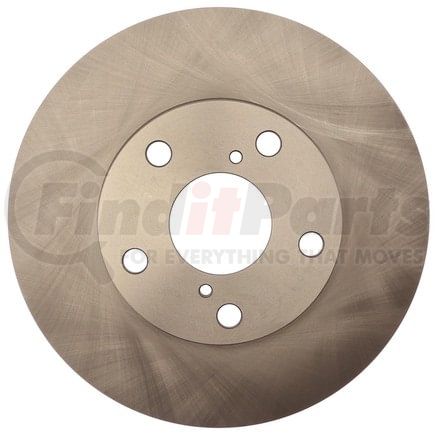

Raybestos R-Line Brake Rotor

Application Summary

2005-2001 Toyota RAV4 Front

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.44 IN
Center Hole Diameter 62 MM
9565 Conventional
9540 Non-Directional
Discard Thickness 0.906 IN
Discard Thickness 23 MM
Harmonize Code 8708.30.5030
Material Cast Iron
Mounting Bolt Hole Circle Diameter 4.5 IN
Mounting Bolt Hole Circle Diameter 114.3 MM
Mounting Bolt Hole Diameter 0.573 IN
Mounting Bolt Hole Diameter 14.55 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 0.984 IN
Nominal Thickness 25 MM
Outside Diameter 10.825 IN
Outside Diameter 274.95 MM
Overall Height 1.94 IN
Overall Height 49.3 MM
Salability Restrictions No
Solid Or Vented Type Rotor Solid
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
UPC 00829352372876

Part Interchanges

Fits Vehicles

  • Toyota RAV4 (2001-2005)
