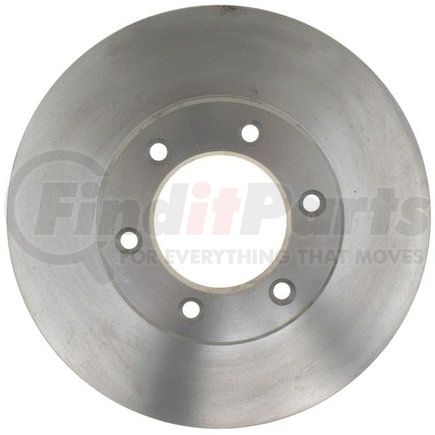

(888) 312-8812 Login SignupRAYBESTOS 96391R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96391R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
1995 Mercedes-Benz E320 Rear, 1993-1992 Mercedes-Benz 400E Rear, 1995-1994 Mercedes-Benz E420 Rear, 1995 Mercedes-Benz C36 AMG Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96391R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.636 IN |
| Center Hole Diameter | 66.95 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.843 IN |
| Discard Thickness | 21.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 112 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24 MM |
| Outside Diameter | 10.95 IN |
| Outside Diameter | 278.15 MM |
| Overall Height | 2.185 IN |
| Overall Height | 55.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352466254 |
RAYBESTOS 96391R Cross References
| Brand | Part Number |
|---|---|
| APEX4403, 829352466254 | |
| ADVANCE AUTO PARTS | 141842 |
| AMERICAN REMANUFACTURED | 89-74025 |
| ATE BRAKE PRODUCTS | 424188 |
| AUTOSPECIALTY | EBR442 |
| AUTOZONE | 34153, 34153DG |
| BECK/ARNLEY | 083-2562, 083-2882 |
| BENDIX | 141842 |
| BOSCH | 36010955, 36011556 |
| BRAKEBEST | 36010955, 36011556, 96391RGS, 96391, 96391R |
| BREMBO | 25752 |
| CENTRIC | 120.35026, 121.35026, 126.35026SL, 126.35026SR, 127.35026L, 127.35026R |
| Casting Numbers | 325840 |
| Centric Parts | 120.35026, 121.35026, 126.35026SL, 126.35026SR, 127.35026L, 127.35026R |
| DELPHI | RB321 |
| DURA CORP | BR34153 |
| EUROROTOR | ME184 |
| MERCEDES-BENZ | 1244230812 |
| MIGHTY DISTRIBUTING SYSTEM | 34153 |
| NEWTEK AUTOMOTIVE | 34153 |
| Newtek Automotive USA | 34153 |
| QUALIS | 34153 |
| ROCKHILL | 31065 |
| STANDARD ROTORS AND DRUMS | 34153 |
| TRW | 4355 |
| UAP | 34153 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51245 |
RAYBESTOS 96391R Fits Vehicles
- Mercedes-Benz E420 (1994-1995)
- Mercedes-Benz E320 (1995)
- Mercedes-Benz C36 AMG (1995)
- Mercedes-Benz 400E (1992-1993)
