(888) 312-8812 Login SignupRAYBESTOS 96760R Raybestos R-Line Brake Rotor
$4599
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 17
RAYBESTOS 96760R Part Description
Manufacturer
Product Description

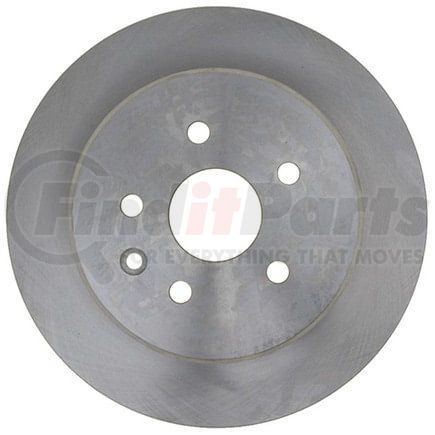

Raybestos R-Line Brake Rotor
Application Summary
2010-2002 Lexus SC430 Rear, 2005-1998 Lexus GS300 Rear, 2005-2001 Lexus IS300 Rear, 2000-1998 Lexus GS400 Rear, 2005-2001 Lexus GS430 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96760R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.442 IN |
| Center Hole Diameter | 62.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.413 IN |
| Discard Thickness | 10.5 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 114.3 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.472 IN |
| Nominal Thickness | 12 MM |
| Outside Diameter | 12.08 IN |
| Outside Diameter | 306.85 MM |
| Overall Height | 2.505 IN |
| Overall Height | 63.65 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352372241 |
RAYBESTOS 96760R Cross References
RAYBESTOS 96760R Fits Vehicles
- Lexus SC430 (2002-2010)
- Lexus IS300 (2001-2005)
- Lexus GS430 (2001-2005)
- Lexus GS400 (1998-2000)
- Lexus GS300 (1998-2005)
