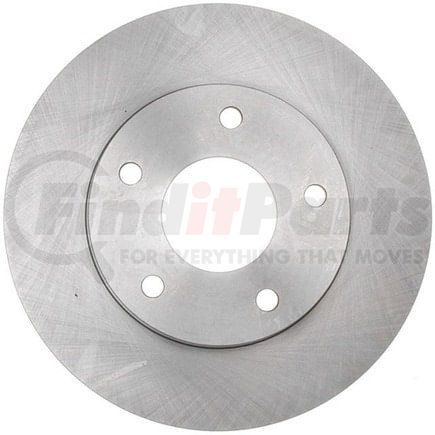

Raybestos 56694R - Raybestos R-Line Brake Rotor
$3849
MSRP: $69.09
Save: $30.60
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
RAYBESTOS part description
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2004-1998 Chevrolet S10 Front, 2005-1998 Chevrolet Blazer Front, 2004-1998 GMC Sonoma Front, 2005-1998 GMC Jimmy Front, 2001-1997 Oldsmobile Bravada Front, 2000-1998 Isuzu Hombre Front
Product Attributes
ABS Tone Ring Included | No |
Center Hole Diameter | 2.79 IN |
Center Hole Diameter | 70.85 MM |
9565 | Conventional |
9540 | Non-Directional |
Discard Thickness | 1.083 IN |
Discard Thickness | 27.5 MM |
Harmonize Code | 8708.30.5030 |
Material | Cast Iron |
Mounting Bolt Hole Circle Diameter | 4.75 IN |
Mounting Bolt Hole Circle Diameter | 120.65 MM |
Mounting Bolt Hole Diameter | 0.495 IN |
Mounting Bolt Hole Diameter | 12.55 MM |
Mounting Bolt Hole Quantity | 5 |
Nominal Thickness | 1.14 IN |
Nominal Thickness | 28.95 MM |
Outside Diameter | 10.82 IN |
Outside Diameter | 274.85 MM |
Overall Height | 2.16 IN |
Overall Height | 54.85 MM |
Salability Restrictions | No |
Solid Or Vented Type Rotor | Vented |
Stud/Lug Hole Quantity | 5 |
UNSPSC Code | 25171715 |
Additional Information
Country of Origin (Primary) | CN |
UPC | 00829352364376 |
Part Interchanges
- General Motors 15733699
- General Motors 18060219
- General Motors 18060691
- Isuzu 8157336990
- Isuzu 8180606910
- Beck/Arnley 083-2773
- Bosch RBR55047
- Brembo 09.7651.10
- Brembo 27009
- Delphi RB535
- Mighty Distributing System 55047
- Universal 101708
- Wagner Brake BD125559
- Wagner Brake BD125559E
- ACDelco 177-890
- Bendix 145182
- Autospecialty AR8638
- Autospecialty AR8638E
- California Drum & Rotor 125559
- Eurorotor 55370
- Guardian 52-125559
- Midas BR2042
- Quality Brand 55047
- Quality Brand Q4011
- VIPAR - Vehicle Indusrty Parts & Manufacturing X51258
- PowerStop AR8638EVC
- BrakeBest 25010540
- BrakeBest 56694
- BrakeBest 56694FZN
- BrakeBest 56694R
- BrakeBest 56694RGS
- BrakeBest 81-125559
- BrakeBest BD125559
- Centric Parts 120.66038
- Centric Parts 120.66038CRY
- Centric Parts 121.66038
- Centric Parts 125.66038
- Centric Parts 125.66038CRY
- Centric Parts 126.66038CSL
- Centric Parts 126.66038CSR
- Centric Parts 126.66038SL
- Centric Parts 126.66038SR
- Centric Parts 127.66038CL
- Centric Parts 127.66038CR
- Centric Parts 127.66038L
- Centric Parts 127.66038R
- Centric Parts 128.66038CL
- Centric Parts 128.66038CR
- Centric Parts 128.66038L
- Centric Parts 128.66038R
- Centric Parts 227.66038L
- Centric Parts 227.66038R
- Centric Parts 320.66038
- WABCO - Archived PS125559
- AutoZone 55047
- AutoZone 55047B
- AutoZone 55047DG
- AutoZone 55047DL
- AutoZone DL55047
- Monroe Brakes BD125559
- Advance Auto Parts 145182
- Advance Auto Parts YH145182
- Advance Auto Parts YH145182C
- Advance Auto Parts YH145182P
- American Remanufactured 789-44038
- American Remanufactured 89-44038
- Autoxtra 125559
- Autoxtra 8056694
- Autoxtra AX55047
- Casting Numbers 15163465
- Casting Numbers 211118-C
- Casting Numbers 325281
- Dura Corp BR55047
- Dura Corp BR5504702
- Continental-ContiTech CW29702
- Standard Rotors and Drums 55047
- GREN 672502
- Qualis 55047
- Winhere 6620978
- Winhere YH2417
- Newtek Automotive USA 55047
- Promax 14-55047
- Parts Master P125559
- UAP 2055047
- UAP 55047
- Centric Parts 321.66038
- Omnicraft QBRR109
- Bridgestone 7005027
- DuraGo BR55047
- DuraGo BR5504702
RAYBESTOS 56694R Cross Reference
We have 83 alternatives for the 56694R by RAYBESTOS:
- ACDELCO 177-890
- AUTOSPECIALTY AR8638
- AUTOSPECIALTY AR8638E
- BENDIX 145182
- BOSCH RBR55047
- DELPHI RB535
- GM 15733699
- GM 18060219
- GM 18060691
- ISUZU 8157336990
- ISUZU 8180606910
- THE UNIVERSAL GROUP 101708
- WABCO PS125559
- ADVANCE AUTO PARTS 145182
- ADVANCE AUTO PARTS YH145182
- ADVANCE AUTO PARTS YH145182C
- ADVANCE AUTO PARTS YH145182P
- AMERICAN REMANUFACTURED 789-44038
- AMERICAN REMANUFACTURED 89-44038
- AUTOXTRA 125559
- AUTOXTRA 8056694
- AUTOXTRA AX55047
- AUTOZONE 55047
- AUTOZONE 55047B
- AUTOZONE 55047DG
- AUTOZONE 55047DL
- AUTOZONE DL55047
- BECK/ARNLEY 083-2773
- BRAKEBEST 25010540
- BRAKEBEST 56694
- BRAKEBEST 56694FZN
- BRAKEBEST 56694R
- BRAKEBEST 56694RGS
- BRAKEBEST 81-125559
- BRAKEBEST BD125559
- BREMBO 09.7651.10
- BREMBO 27009
- CALIFORNIA DRUM & ROTOR 125559
- CENTRIC 120.66038
- CENTRIC 120.66038CRY
- CENTRIC 121.66038
- CENTRIC 125.66038
- CENTRIC 125.66038CRY
- CENTRIC 126.66038CSL
- CENTRIC 126.66038CSR
- CENTRIC 126.66038SL
- CENTRIC 126.66038SR
- CENTRIC 127.66038CL
- CENTRIC 127.66038CR
- CENTRIC 127.66038L
- CENTRIC 127.66038R
- CENTRIC 128.66038CL
- CENTRIC 128.66038CR
- CENTRIC 128.66038L
- CENTRIC 128.66038R
- CENTRIC 227.66038L
- CENTRIC 227.66038R
- CENTRIC 320.66038
- CENTRIC 321.66038
- CONTINENTAL-CONTITECH CW29702
- DURA CORP BR55047
- DURA CORP BR5504702
- EUROROTOR 55370
- GREN 672502
- GUARDIAN 52-125559
- MIDAS BR2042
- MIGHTY DISTRIBUTING SYSTEM 55047
- MONROE BRAKES BD125559
- NEWTEK AUTOMOTIVE 55047
- PARTS MASTER P125559
- POWERSTOP AR8638EVC
- PROMAX 14-55047
- QUALIS 55047
- QUALITY BRAND 55047
- QUALITY BRAND Q4011
- STANDARD ROTORS AND DRUMS 55047
- UAP 2055047
- UAP 55047
- VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING X51258
- WAGNER BRAKE BD125559
- WAGNER BRAKE BD125559E
- WINHERE 6620978
- WINHERE YH2417
Fits Vehicles
- Oldsmobile Bravada (1997-2001)
- GMC Sonoma (1998-2004)
- GMC Jimmy (1998-2005)
- Chevrolet S10 (1998-2004)
- Chevrolet Blazer (1997-2005)
- Isuzu Hombre (1998-2000)
