RAYBESTOS 96174R Part Description
Manufacturer
Product Description

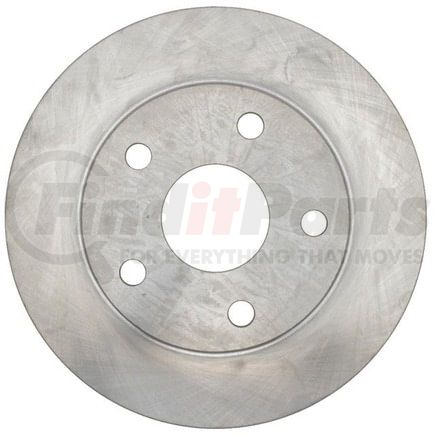

Raybestos R-Line Brake Rotor
Application Summary
1994-1991 Toyota Previa Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96174R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.442 IN |
| Center Hole Diameter | 62.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.906 IN |
| Discard Thickness | 23 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.573 IN |
| Mounting Bolt Hole Diameter | 14.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.985 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 10.02 IN |
| Outside Diameter | 254.5 MM |
| Overall Height | 2.075 IN |
| Overall Height | 52.7 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352370162 |
RAYBESTOS 96174R Cross References
| Brand | Part Number |
|---|---|
| 900107MM, 829352370162 | |
| ADVANCE AUTO PARTS | 141654, YH141654, YH141654C |
| AMERICAN REMANUFACTURED | 789-22068, 89-22068 |
| AUTOPART INTERNATIONAL | 78495 |
| AUTOSPECIALTY | JBR591, JBR591E |
| AUTOXTRA | 125058, AX31048 |
| AUTOZONE | 31048, 31048DG |
| BECK/ARNLEY | 080-2496, 083-2496 |
| BENDIX | 141654 |
| BRAKE HEADQUARTERS | BR06218 |
| BRAKE PRO | 4612112 |
| BRAKEBEST | 96174, 96174R, 96174RGS, BD125058 |
| BREMBO | 09.6723.10, 25428 |
| CALIFORNIA DRUM & ROTOR | 125058 |
| CENTRIC | 120.44070, 121.44070, 125.44070, 126.44070SL, 126.44070SR, 127.44070L, 127.44070R, 320.44070 |
| CENTURY | 9604 |
| Casting Numbers | 210971-C, 310481, 325013 |
| Centric Parts | 120.44070, 121.44070, 125.44070, 126.44070SL, 126.44070SR, 127.44070L, 127.44070R, 320.44070 |
| DELPHI | RB396 |
| DURA CORP | BR31048 |
| DuraGo | BR31048 |
| EIS BRAKES | D17559 |
| EUROROTOR | TO661 |
| GREN | 16902 |
| GUARDIAN | 52-125058 |
| ITM ENGINE COMPONENTS | 1601567 |
| MAGMA PRODUCTS | PMR565142 |
| MIDAS | BR1738 |
| MIGHTY DISTRIBUTING SYSTEM | 31048 |
| MONROE BRAKES | BD125058 |
| NAPA BRAKES | TSR747, TSR7680 |
| NEWTEK AUTOMOTIVE | 31048 |
| Newtek Automotive USA | 31048 |
| PROMAX | 14-31048 |
| QUALIS | 31048 |
| QUALITEE INTERNATIONAL | 64-79-840 |
| QUALITY BRAND | 31048, Q171 |
| QUINTON HAZELL | BDC4849 |
| ROCKHILL | 31048 |
| STANDARD ROTORS AND DRUMS | 31048 |
| THE UNIVERSAL GROUP | 107481 |
| TOYOTA | 4351228060, 4351228110 |
| TRUSTAR | 479840, R79840 |
| TRW | DF3028S, DF4100S, DF4347S |
| UAP | 31048 |
| Universal | 107481 |
| VAICO | V10 9753 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50759 |
| WAGNER | BD125058 |
| WAGNER BRAKE | BD125058 |
| WINHERE | 442081, YH2081 |
RAYBESTOS 96174R Fits Vehicles
- Toyota Previa (1991-1994)
