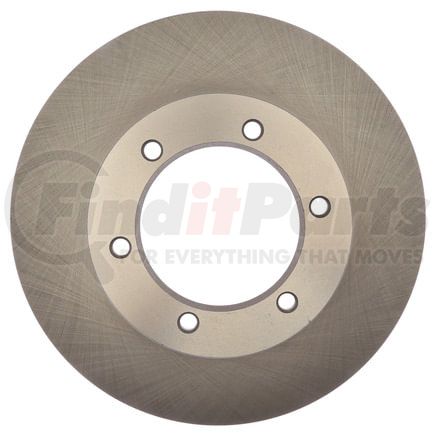

Raybestos 96049R - Raybestos R-Line Brake Rotor
$3949
MSRP: $70.82
Save: $31.33
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
RAYBESTOS part description
Product Description
Raybestos R-Line Brake Rotor
Application Summary
1995-1986 Toyota Pickup Front, 1991-1986 Toyota 4Runner Front, 2009-2004 Toyota Hilux Front
Product Attributes
ABS Tone Ring Included | No |
Center Hole Diameter | 3.94 IN |
Center Hole Diameter | 100.1 MM |
9565 | Conventional |
9540 | Non-Directional |
Discard Thickness | 0.709 IN |
Discard Thickness | 18 MM |
Harmonize Code | 8708.30.5030 |
Material | Cast Iron |
Mounting Bolt Hole Circle Diameter | 5 IN |
Mounting Bolt Hole Circle Diameter | 127 MM |
Mounting Bolt Hole Diameter | 0.417 IN |
Mounting Bolt Hole Diameter | 10.6 MM |
Mounting Bolt Hole Quantity | 6 |
Nominal Thickness | 0.785 IN |
Nominal Thickness | 19.95 MM |
Outside Diameter | 11.385 IN |
Outside Diameter | 289.2 MM |
Overall Height | 2.53 IN |
Overall Height | 64.25 MM |
Salability Restrictions | No |
Solid Or Vented Type Rotor | Vented |
Stud/Lug Hole Quantity | 6 |
UNSPSC Code | 25171715 |
Additional Information
Country of Origin (Primary) | CN |
UPC | 00829352369562 |
Part Interchanges
- Toyota 4351235110
- Toyota 4351235190
- Beck/Arnley 080-2198
- Beck/Arnley 083-2198
- Bosch 50011231
- Brembo 09.5173.80
- Brembo 25508
- Delphi RB655
- Gunite G16043
- MCI 3940
- Mighty Distributing System 3257
- Universal 107390
- Wagner Brake BD60869
- Wagner Brake SB96049
- Bendix 141408
- Roadmates 526669
- Autospecialty JBR373
- Autospecialty JBR373E
- Brake Headquarters BR06161
- California Drum & Rotor 60869
- Eurorotor TO639
- Guardian 52-60869
- Midas BR1590
- ITM Engine Components 1601548
- Qualitee International 64-79-650
- Quality Brand 3257
- Quality Brand Q180
- Rockhill 3257
- VIPAR - Vehicle Indusrty Parts & Manufacturing X50618
- Autopart International 78601
- Quinton Hazell BDC3819
- BrakeBest 50011231
- BrakeBest 81-60869
- BrakeBest 96049
- BrakeBest 96049R
- BrakeBest 96049RGS
- BrakeBest BD60869
- Centric Parts 120.44044
- Centric Parts 120.44044CRY
- Centric Parts 121.44044
- Centric Parts 125.44044
- Centric Parts 125.44044CRY
- Centric Parts 126.44044CSL
- Centric Parts 126.44044CSR
- Centric Parts 126.44044SL
- Centric Parts 126.44044SR
- Centric Parts 127.44044CL
- Centric Parts 127.44044CR
- Centric Parts 127.44044L
- Centric Parts 127.44044R
- Centric Parts 128.44044CL
- Centric Parts 128.44044CR
- Centric Parts 128.44044L
- Centric Parts 128.44044R
- Centric Parts 227.44044L
- Centric Parts 227.44044R
- Centric Parts 320.44044
- AutoZone 3257
- AutoZone 3257B
- AutoZone 3257DG
- AutoZone DL3257
- Monroe Brakes BD60869
- Advance Auto Parts 141408
- Advance Auto Parts YH141408
- Advance Auto Parts YH141408C
- American Remanufactured 789-22043
- American Remanufactured 89-22043
- Autoxtra 60869
- Autoxtra AX3257
- Casting Numbers 210527-C
- Casting Numbers 325093
- Casting Numbers 6742
- Century 9313
- Dayton Walther D7969
- Dura Corp BR3257
- EIS Brakes D17495
- EIS Brakes D17557
- Continental-ContiTech CW20712
- Standard Rotors and Drums 3257
- Brake Pro 4619313
- GREN 13202
- Qualis 3257
- TruStar 479650
- TruStar R79650
- Winhere 442125
- Winhere YH2125
- Newtek Automotive USA 3257
- TRW DF1418S
- Vera 3406059
- Interbrakes TY481V
- Promax 14-3257
- Parts Master P60869
- UAP 3257
- NAPA BRAKES TSR780
- Bridgestone 7000916
- Ultra Brake TO-639
- DuraGo BR3257
RAYBESTOS 96049R Cross Reference
We have 93 alternatives for the 96049R by RAYBESTOS:
- 900084MM
- 829352369562
- AUTOSPECIALTY JBR373
- AUTOSPECIALTY JBR373E
- BENDIX 141408
- BOSCH 50011231
- CENTURY 9313
- DELPHI RB655
- GUNITE G16043
- TOYOTA 4351235110
- TOYOTA 4351235190
- THE UNIVERSAL GROUP 107390
- ADVANCE AUTO PARTS 141408
- ADVANCE AUTO PARTS YH141408
- ADVANCE AUTO PARTS YH141408C
- AMERICAN REMANUFACTURED 789-22043
- AMERICAN REMANUFACTURED 89-22043
- AUTOPART INTERNATIONAL 78601
- AUTOXTRA 60869
- AUTOXTRA AX3257
- AUTOZONE 3257
- AUTOZONE 3257B
- AUTOZONE 3257DG
- AUTOZONE DL3257
- BECK/ARNLEY 080-2198
- BECK/ARNLEY 083-2198
- BRAKE HEADQUARTERS BR06161
- BRAKE PRO 4619313
- BRAKEBEST 50011231
- BRAKEBEST 81-60869
- BRAKEBEST 96049
- BRAKEBEST 96049R
- BRAKEBEST 96049RGS
- BRAKEBEST BD60869
- BREMBO 09.5173.80
- BREMBO 25508
- CALIFORNIA DRUM & ROTOR 60869
- CENTRIC 120.44044
- CENTRIC 120.44044CRY
- CENTRIC 121.44044
- CENTRIC 125.44044
- CENTRIC 125.44044CRY
- CENTRIC 126.44044CSL
- CENTRIC 126.44044CSR
- CENTRIC 126.44044SL
- CENTRIC 126.44044SR
- CENTRIC 127.44044CL
- CENTRIC 127.44044CR
- CENTRIC 127.44044L
- CENTRIC 127.44044R
- CENTRIC 128.44044CL
- CENTRIC 128.44044CR
- CENTRIC 128.44044L
- CENTRIC 128.44044R
- CENTRIC 227.44044L
- CENTRIC 227.44044R
- CENTRIC 320.44044
- CONTINENTAL-CONTITECH CW20712
- DAYTON WALTHER D7969
- DURA CORP BR3257
- EIS BRAKES D17557
- EIS BRAKES D17495
- EUROROTOR TO639
- GREN 13202
- GUARDIAN 52-60869
- INTERBRAKES TY481V
- ITM ENGINE COMPONENTS 1601548
- MCI 3940
- MIDAS BR1590
- MIGHTY DISTRIBUTING SYSTEM 3257
- MONROE BRAKES BD60869
- NAPA BRAKES TSR780
- NEWTEK AUTOMOTIVE 3257
- PARTS MASTER P60869
- PROMAX 14-3257
- QUALIS 3257
- QUALITEE INTERNATIONAL 64-79-650
- QUALITY BRAND 3257
- QUALITY BRAND Q180
- QUINTON HAZELL BDC3819
- ROADMATES 526669
- ROCKHILL 3257
- STANDARD ROTORS AND DRUMS 3257
- TRUSTAR 479650
- TRUSTAR R79650
- TRW DF1418S
- UAP 3257
- VERA 3406059
- VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING X50618
- WAGNER BRAKE BD60869
- WAGNER BRAKE SB96049
- WINHERE 442125
- WINHERE YH2125
Fits Vehicles
- Toyota Hilux (2004-2009)
- Toyota Pickup (1986-1995)
- Toyota 4Runner (1986-1991)
