RAYBESTOS 96758R Part Description
Manufacturer
Product Description

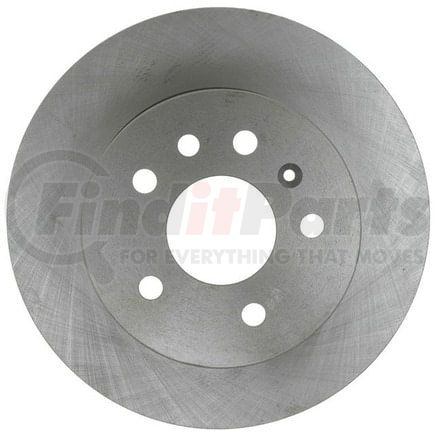

Raybestos R-Line Brake Rotor
Application Summary
2003-2001 Saturn L200 Rear, 2003-1999 Saab 9-3 Rear, 2005-2001 Saturn L300 Rear, 2000 Saturn LS1 Rear, 2002-2001 Saturn L100 Rear, 2003-2001 Saturn LW200 Rear, 1998-1997 Saab 900 Rear, 2003-2001 Saturn LW300 Rear, 1999 Saab 9-5 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96758R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.58 IN |
| Center Hole Diameter | 65.55 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Circle Diameter | 110 MM |
| Mounting Bolt Hole Diameter | 0.557 IN |
| Mounting Bolt Hole Diameter | 14.15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10 MM |
| Outside Diameter | 11.26 IN |
| Outside Diameter | 286 MM |
| Overall Height | 2.725 IN |
| Overall Height | 69.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352372227 |
RAYBESTOS 96758R Cross References
RAYBESTOS 96758R Fits Vehicles
- Chevrolet Astra (2000-2008)
- Saturn LW2 (2000)
- Saturn LS (2000)
- Saturn LS2 (2000)
- Saturn LS1 (2000)
- Saturn LW1 (2000)
- Saab 9-5 (1999)
- Saab 9-3 (1999-2003)
- Saab 900 (1997-1998)
- Saturn LW300 (2001-2003)
- Saturn L300 (2001-2005)
- Saturn LW200 (2001-2003)
- Saturn L100 (2001-2002)
- Saturn L200 (2001-2003)
