Dorman 686-251 - Loaded Knuckle
$37849
In stock
limited availability at this price!
. Learn more
DORMAN part description
Product Description

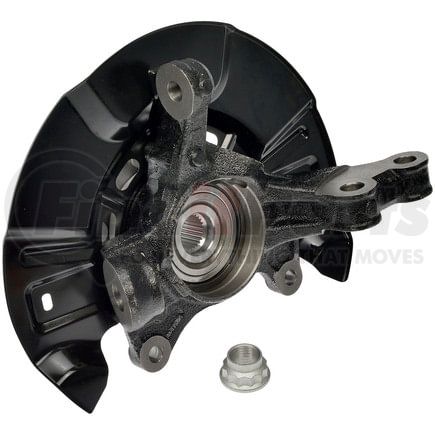

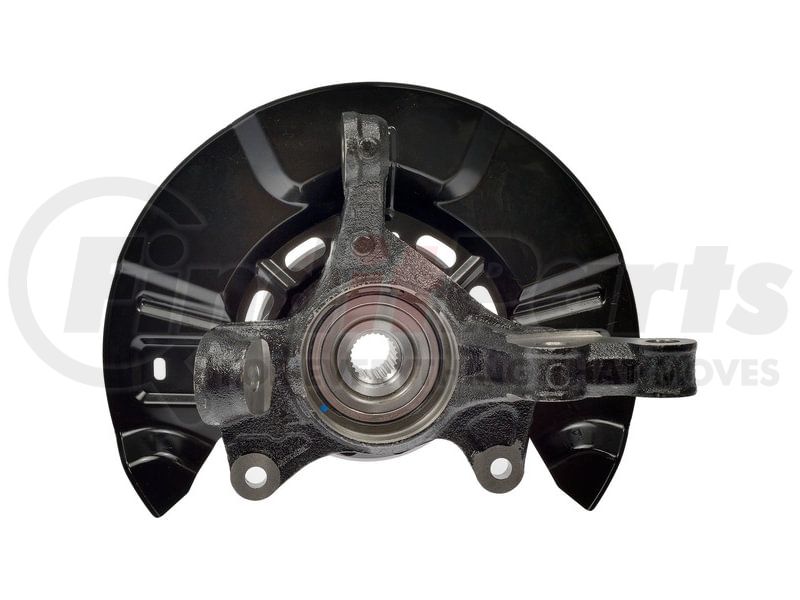

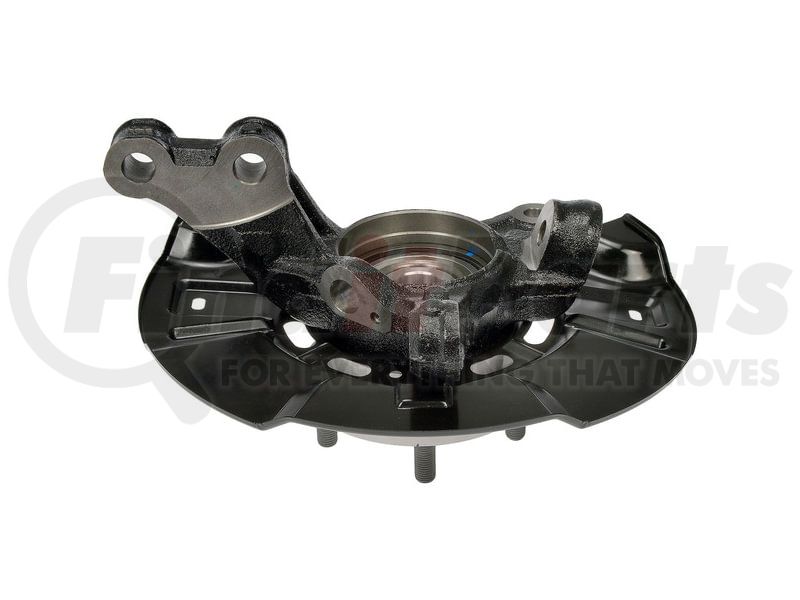

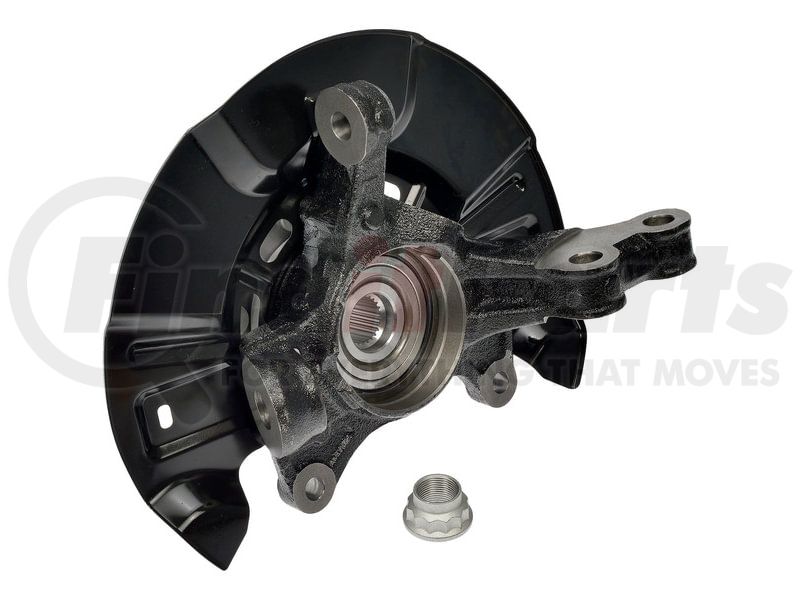

Front Loaded Knuckle
Application Summary
Pontiac Vibe 2010-09, Toyota Matrix 2013-09
Features & Benefits
- Pre-pressed assembly - this complete loaded knuckle kit includes all necessary components ready for installation right out of the box
- Saves time - eliminates the possibility of extended time spent wrestling with individual corroded components
- Simpler solution - no need for hydraulic press to perform complete bearing repair, making replacement faster and more predictable for both professionals and DIYers
- Quality engineering - designed in the United States and backed by a century of automotive aftermarket experience
Wheel, Bearing, Hub, Assembly, Hubs, Assemblies
Product Attributes
| 10010 | 27.5 MM |
| Spline Quantity | 26 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 5 |
| Wheel Stud Size | 1.5 mm |
| Wheel Pilot Diameter | 62 MM |
| Brake Pilot Diameter | 139 MM |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 71.25 MM |
| Flange Shape | Circular |
| Flange Bolts Included | Yes |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Mounting Hardware Included | No |
| Anti Lock Brake Sensor Included | No |
| Connector Quantity | 0 |
| Drive Type | Driven |
| Bearing Type | Ball |
| Flange Bolt Hole Diameter | 12.85 MM |
| Flange Diameter | 139 MM |
| 9555 | 114.3 MM |

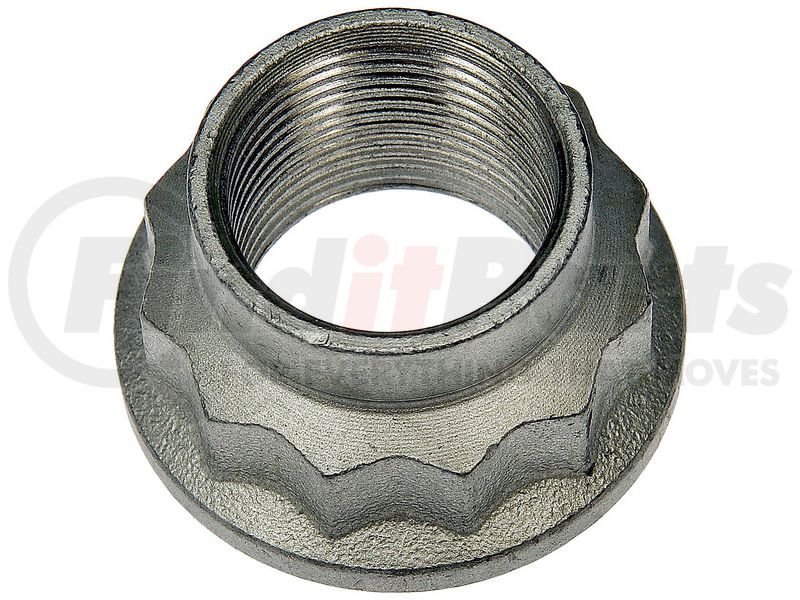

| Package Contents | 1 Steering Knuckle; 1 Hub; 1 Bearing; 1 Backing Plate; 1 Snap Ring; 3 Hex Head Bolts; 1 Axle Nut |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 4016995010 |
| UPC | 00889245539519 |
| VMRS Code | 018005003 |
| UNSPSC | 31171503 |
Part Interchanges
Dorman® is a trusted supplier of premium-quality replacement parts, hardware, and fasteners to the automotive aftermarket. Since 1918, it has introduced thousands of these replacement parts that customers could once only get from original equipment manufacturers. Dorman believes that customers should always come first. So its dedicated team of engineers and designers creates each Dorman product with only one goal in mind—to make repair tasks easier and faster for mechanics and to save vehicle owners money from expensive repairs. Dorman continually expands its product line-up to offer a broader range of hard-to-find parts and accessories that could replace rare or expensive OEM parts.
