Centric 407.44017 - Centric Premium Hub and Bearing Assembly; With Integral ABS
$15849
5 day lead time
limited availability at this price!
Pay over 3-12 months with . Learn more
CENTRIC part description
Product Description

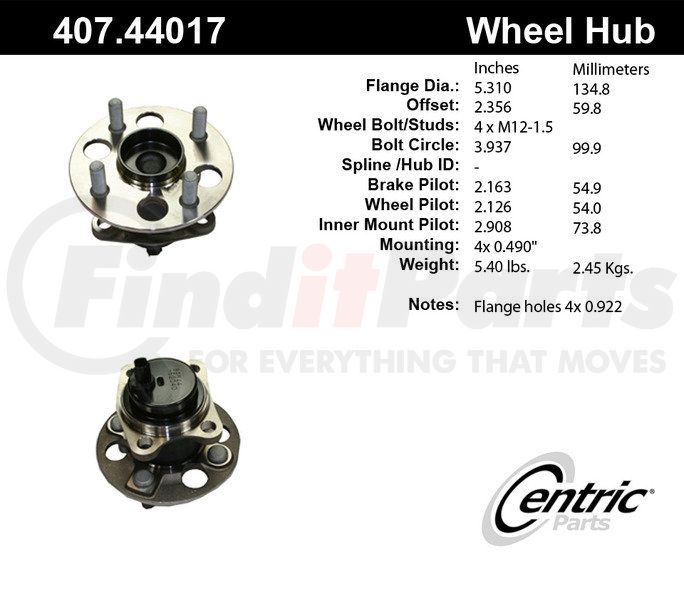

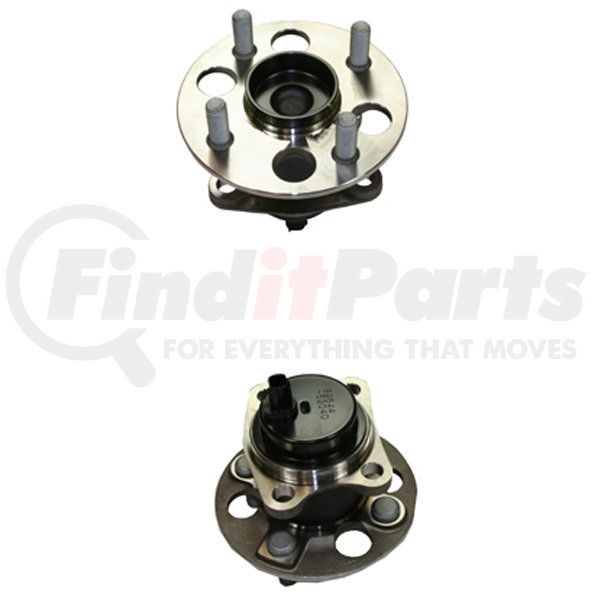

Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
Bolt Circle Diameter [cntrc] Mm | 100.000 |
Off-set [cntrc] In | 59.840 |
Mounting Hole Qty [cntrc] | 4 |
Notes [cntrc] | Flange Holes 4x 0.922 |
Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
Product Grade [cntrc] | Premium |
Inner Mount Pilot [cntrc] In | 2.908 |
Bolt Circle Diameter [cntrc] In | 3.937 |
Off-set [cntrc] Mm | 2.356 |
Inner Mount Pilot [cntrc] Mm | 73.860 |
Mouting Thread Size [cntrc] In | 0.490 |
Wheel Stud Size | 12.000 MM |
Wheel Pilot Diameter | 54.000 MM |
Wheel Pilot Diameter | 2.126 IN |
Brake Pilot Diameter | 54.940 MM |
Brake Pilot Diameter | 2.163 IN |
Wheel Stud Quantity | 5 |
Wheel Studs Included | Yes |
Flange Diameter | 5.310 IN |
Flange Diameter | 134.870 MM |
Additional Information
Harmonized Tariff Code (HTS) | 8482105016 |
NAFTA Preference Criterion Code | B |
Country of Origin (Primary) | JP |
UPC | 805890619888 |
Part Interchanges
Fits Vehicles
- Scion iQ (2013)
- Toyota Prius C (2012-2019)
- Toyota Yaris (2006-2014)
