CENTRIC part description

Product Description

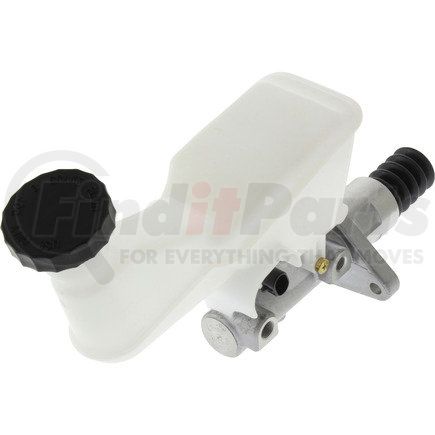

Centric Premium Brake Master Cylinder

Features & Benefits

  • Match O.E. parts in quality; configuration and fitment. Complete with reservoirs; switches and floats. Original aluminum casting body design where applicable. Manufactured under the highest quality standards by OEM and OES manufacturers

Product Attributes

Publication Bore [cntrc] 7/8"
Push Rod: Length / Depth [cntrc] In 2.4
Boss, Nipple Or Port: Front, Left: #a [cntrc] M12-1.00 inv
Boss, Nipple Or Port: Rear: #a [cntrc] M10-1.00 inv
Weight [cntrc] Lbs 2.8
Weight [cntrc] Kgs 1.27
Primary Outlet Flare Type [cntrc] Inverted
Secondary Outlet Flare Type [cntrc] Inverted
Product Grade [cntrc] Premium
Reservoir Material Plastic
Dust Boot Included Yes
Mounting Hardware Included No
Secondary Outlet Thread Pitch 1.00 MM
Primary Outlet Thread Pitch 1.00 MM
Bore Type Straight
9425 22.225 MM
9425 0.875 IN
9556 M12-1.00
9557 M10-1.00
9566 Inverted
9567 Inverted
9568 22.225 MM
9568 0.875 IN
9570 Removable
Mounting Bracket Included No
Port Quantity 2
Bleeder Hoses Included No
Secondary Outlet Thread Diameter 12.000 MM
Primary Outlet Thread Diameter 10.000 MM
Reservoir Type Single
Reservoir Included Yes
Pushrod Included No
Master Cylinder Material Aluminum
Master Cylinder Cap Included Yes
Brake Booster Included No
Master Cylinder Bore Diameter 0.875 IN
Master Cylinder Bore Diameter 22.225 MM
Mounting Hole Quantity 2
Gasket Or Seal Included Yes

Additional Information

Harmonized Tariff Code (HTS) 8413919050
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
UPC 805890613770

Part Interchanges

Fits Vehicles

  • Chevrolet Cobalt (2009-2010)
  • Pontiac G5 (2009-2010)
