CENTRIC 131.45508 Part Description
Manufacturer
Product Description

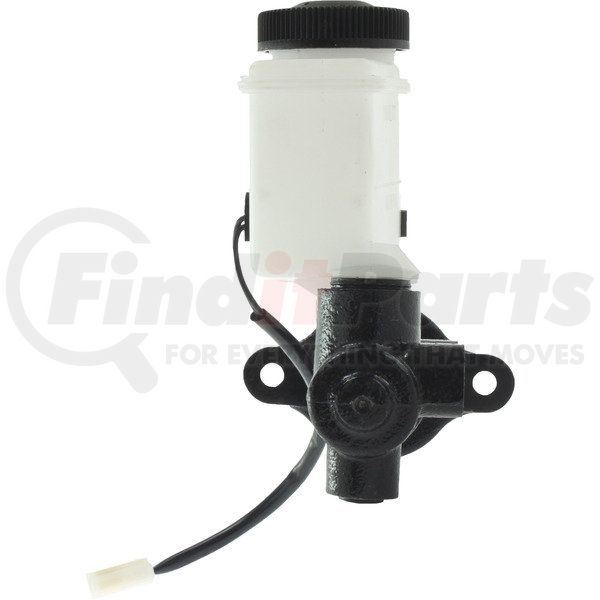

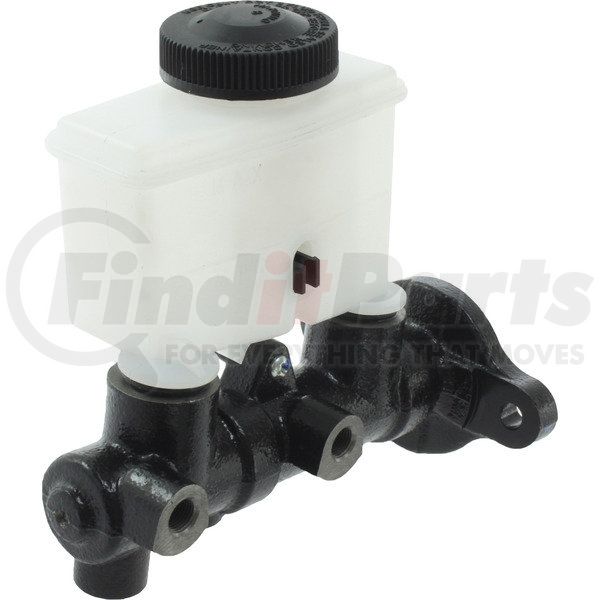

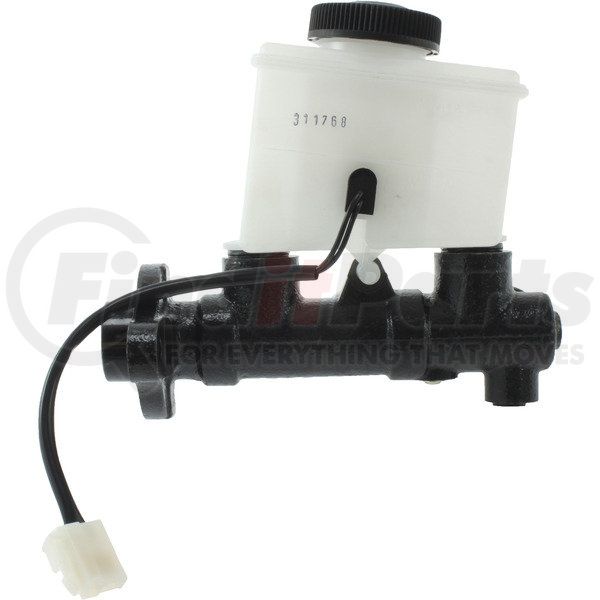

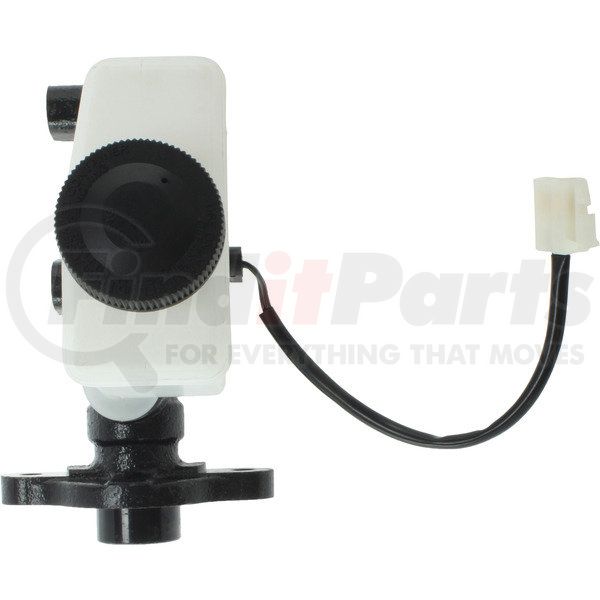

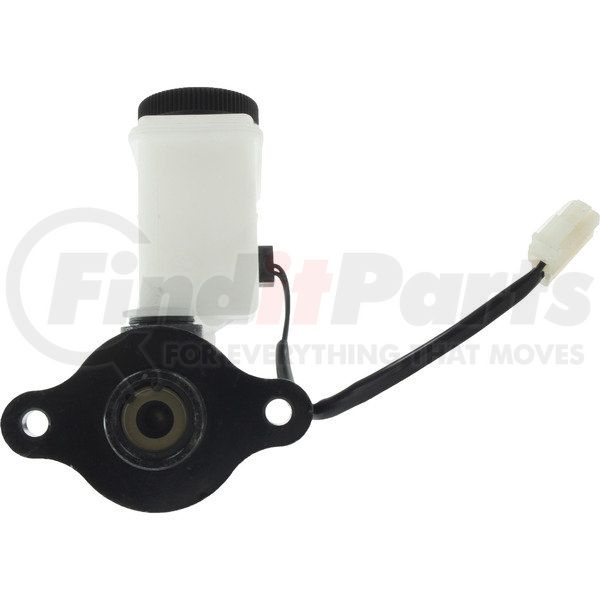

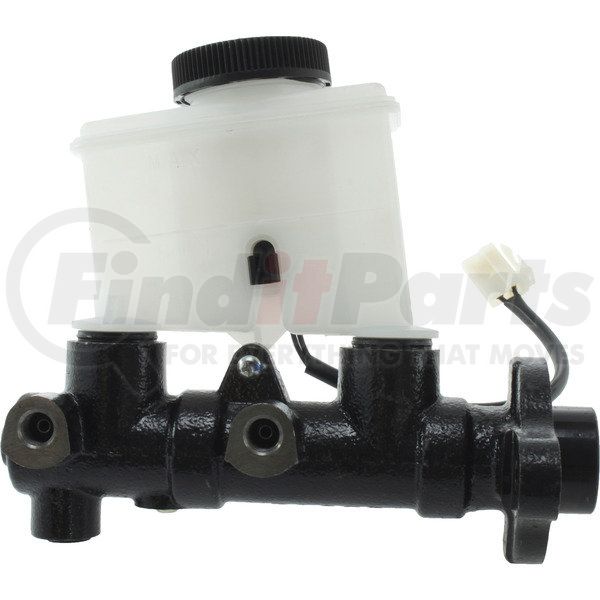

C-Tek Standard Brake Master Cylinder
Features & Benefits
- Reservoirs and caps included. Pressure tested for worry free performance. Wide application coverage.
CENTRIC 131.45508 Specifications
Product Attributes
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | M10-1.00 inv |
| Boss, Nipple Or Port: Rear, Bottom [cntrc] | M12-1.00 bbl |
| Secondary Outlet Flare Type [cntrc] | Inverted |
| Boss, Nipple Or Port: Bottom [cntrc] | M10-1.00 inv |
| Weight [cntrc] Lbs | 2.5 |
| Product Grade [cntrc] | Standard |
| Publication Bore [cntrc] | 7/8" |
| Boss, Nipple Or Port: Rear: #a [cntrc] | M10-1.00 inv |
| Weight [cntrc] Kgs | 1.14 |
| Push Rod: Length / Depth [cntrc] In | 1.28 |
| Boss, Nipple Or Port: Center, Bottom [cntrc] | screw |
| Primary Outlet Flare Type [cntrc] | Inverted |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 22.225 MM |
| Master Cylinder Bore Diameter | 0.875 IN |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Cast Iron |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Primary Outlet Thread Diameter | 10.000 MM |
| Secondary Outlet Thread Diameter | 10.000 MM |
| Bleeder Hoses Included | No |
| Port Quantity | 3 |
| Mounting Bracket Included | No |
| Secondary Outlet Thread Pitch | 1.00 MM |
| Primary Outlet Thread Pitch | 1.00 MM |
| Bore Type | Straight |
| Bore Size | 22.225 MM |
| Bore Size | 0.875 IN |
| Secondary Outlet Thread Size | M10-1.00 |
| Primary Outlet Thread Size | M10-1.00 |
| Primary Outlet Flare Type | Inverted |
| Secondary Outlet Flare Type | Inverted |
| Primary Bore Diameter | 22.225 MM |
| Primary Bore Diameter | 0.875 IN |
| Reservoir Style | Removable |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8413919050 |
| UPC | 805890095866 |
CENTRIC 131.45508 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | E136-50-513, 2302-45508, MC112236, 230245508, MC12209, M900573, M900777, M53508, M53508E, M39654, E13650513, 12209, PMC12209, MC390033, MC39654, 2539654 |
CENTRIC 131.45508 Fits Vehicles
- Mazda B2000 (1986-1987)
- Mazda B2600 (1990-1993)
- Mazda B2200 (1987-1993)
