CENTRIC part description

Product Description

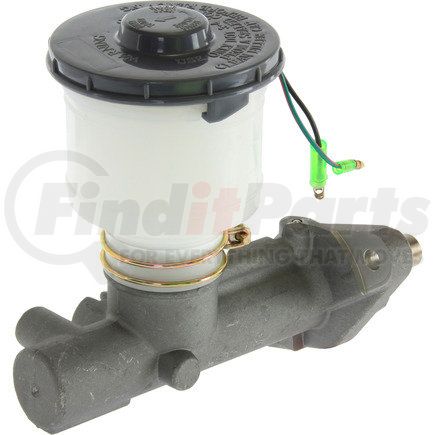

C-Tek Standard Brake Master Cylinder

Features & Benefits

  • Reservoirs and caps included. Pressure tested for worry free performance. Wide application coverage.

Product Attributes

Push Rod: Length / Depth [cntrc] In 2.41
Boss, Nipple Or Port: Center, Right: [cntrc] screw
Weight [cntrc] Lbs 2.5
Primary Outlet Flare Type [cntrc] Inverted
Product Grade [cntrc] Standard
Publication Bore [cntrc] 1"
Boss, Nipple Or Port: Front, Right: #a [cntrc] M10-1.00 inv
Boss, Nipple Or Port: Rear, Right: #a [cntrc] M12-1.00 inv
Weight [cntrc] Kgs 1.14
Secondary Outlet Flare Type [cntrc] Inverted
Reservoir Material Plastic
Mounting Hardware Included No
Gasket Or Seal Included Yes
Mounting Hole Quantity 2
Master Cylinder Bore Diameter 25.400 MM
Master Cylinder Bore Diameter 1.000 IN
Brake Booster Included No
Master Cylinder Cap Included Yes
Master Cylinder Material Aluminum
Pushrod Included No
Reservoir Included Yes
Reservoir Type Single
Primary Outlet Thread Diameter 12.000 MM
Secondary Outlet Thread Diameter 10.000 MM
Bleeder Hoses Included No
Port Quantity 2
Mounting Bracket Included No
Secondary Outlet Thread Pitch 1.00 MM
Primary Outlet Thread Pitch 1.00 MM
Bore Type Straight
9425 25.400 MM
9425 1.000 IN
9556 M10-1.00
9557 M12-1.00
9566 Inverted
9567 Inverted
9568 25.400 MM
9568 1.000 IN
9570 Removable

Additional Information

NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8413919050
UPC 805890011767

Part Interchanges

CENTRIC 131.40022 Cross Reference

We have 2 alternatives for the 131.40022 by CENTRIC:

Fits Vehicles

  • Acura CL (1997)
  • Honda Prelude (1992-1996)
  • Honda Odyssey (1995-1997)
  • Acura TL (1995-1996)
  • Honda Accord (1991-1997)
  • Acura Vigor (1992-1994)
  • Isuzu Oasis (1996-1997)
