(888) 312-8812 Login SignupRAYBESTOS 96188R Raybestos R-Line Brake Rotor
$3549
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 18
RAYBESTOS 96188R Part Description
Manufacturer
Product Description

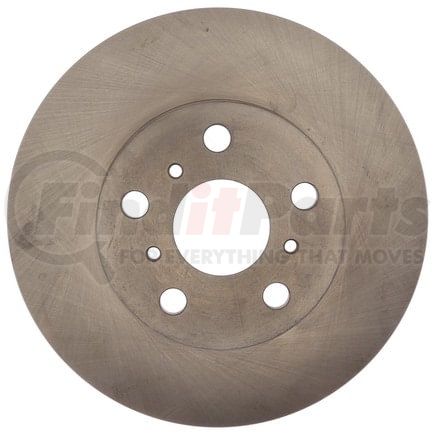

Raybestos R-Line Brake Rotor
Application Summary
1991-1990 Toyota Celica Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96188R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.127 IN |
| Center Hole Diameter | 54.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 100 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.865 IN |
| Nominal Thickness | 21.95 MM |
| Outside Diameter | 10.04 IN |
| Outside Diameter | 255 MM |
| Overall Height | 1.815 IN |
| Overall Height | 46.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352370261 |
RAYBESTOS 96188R Cross References
| Brand | Part Number |
|---|---|
| 829352370261 | |
| ADVANCE AUTO PARTS | 141633, YH141633, YH141633C |
| AMERICAN REMANUFACTURED | 789-22062, 89-22062 |
| ATE BRAKE PRODUCTS | 422178 |
| AUTOPART INTERNATIONAL | 78507 |
| AUTOSPECIALTY | JBR535, JBR535E |
| AUTOXTRA | 125239 |
| AUTOZONE | 31074, 31074DG |
| BECK/ARNLEY | 080-2380, 083-2380 |
| BENDIX | 141633 |
| BRAKE HEADQUARTERS | BR06173 |
| BRAKE PRO | 4612096 |
| BRAKEBEST | 96188, 96188R, 96188RGS, BD125239 |
| BREMBO | 09.6803.10, 25439 |
| BrakeBest | 56189RGS |
| CALIFORNIA DRUM & ROTOR | 125239 |
| CENTRIC | 120.44064, 121.44064, 126.44064SL, 126.44064SR, 127.44064L, 127.44064R, 128.44064L, 128.44064R, 227.44064L, 227.44064R |
| CENTURY | 9801 |
| Casting Numbers | 210522-C, 325580 |
| Centric Parts | 120.44064, 121.44064, 126.44064SL, 126.44064SR, 127.44064L, 127.44064R, 128.44064L, 128.44064R, 227.44064L, 227.44064R |
| DELPHI | RB230 |
| DURA CORP | BR31074 |
| DuraGo | BR31074 |
| EIS BRAKES | D17554 |
| EUROROTOR | TO605 |
| GREN | 17702 |
| GUARDIAN | 52-125239 |
| MAGMA PRODUCTS | PMR563041 |
| MIDAS | BR1758 |
| MIGHTY DISTRIBUTING SYSTEM | 31074 |
| NEWTEK AUTOMOTIVE | 31074 |
| Newtek Automotive USA | 31074 |
| PARTS MASTER | P125239 |
| QUALIS | 31074 |
| QUALITEE INTERNATIONAL | 64-79-760 |
| QUALITY BRAND | 31074, Q161 |
| QUINTON HAZELL | BDC4644 |
| ROCKHILL | 31074 |
| STANDARD ROTORS AND DRUMS | 31074 |
| THE UNIVERSAL GROUP | 107517 |
| TOYOTA | 4351220360 |
| TRUSTAR | 479760, R79760 |
| UAP | 31074 |
| Universal | 107517 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50803 |
| WAGNER | BD125239 |
| WAGNER BRAKE | BD125239 |
| WINHERE | YH2396 |
RAYBESTOS 96188R Fits Vehicles
- Toyota Celica (1990-1991)
RAYBESTOS 96188R Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 96188R Questions & Answers
No questions yet
Be the first to ask a question about this product!
