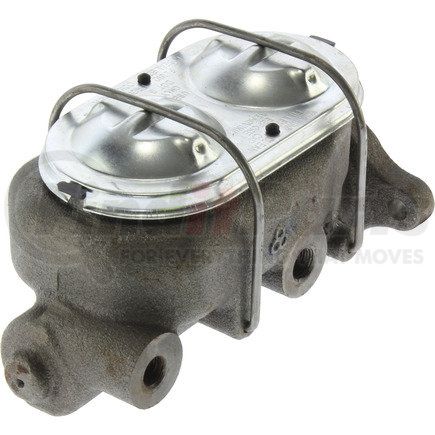

Centric 130.66016 - Centric Premium Brake Master Cylinder
$7699
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Brake Master Cylinder
Features & Benefits
- Match O.E. parts in quality; configuration and fitment. Complete with reservoirs; switches and floats. Original aluminum casting body design where applicable. Manufactured under the highest quality standards by OEM and OES manufacturers
Product Attributes
| Publication Bore [cntrc] | 1 1/8" |
| Push Rod: Length / Depth [cntrc] In | dmpl |
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | 1/2"-20 inv |
| Boss, Nipple Or Port: Rear: #a [cntrc] | 9/16"-18 inv |
| Weight [cntrc] Lbs | 8.3 |
| Weight [cntrc] Kgs | 3.77 |
| Primary Outlet Flare Type [cntrc] | Inverted |
| Secondary Outlet Flare Type [cntrc] | Inverted |
| Product Grade [cntrc] | Premium |
| Reservoir Material | Cast Iron |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 28.575 MM |
| Master Cylinder Bore Diameter | 1.125 IN |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Cast Iron |
| Pushrod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Primary Outlet Thread Diameter | 0.5625 IN |
| Secondary Outlet Thread Diameter | 0.5625 IN |
| Bleeder Hoses Included | No |
| Port Quantity | 2 |
| Mounting Bracket Included | No |
| 9275 | 18 IN |
| 9276 | 18 IN |
| Bore Type | Straight |
| 9425 | 28.575 MM |
| 9425 | 1.125 IN |
| 9556 | 9/16"-18 |
| 9557 | 9/16"-18 |
| 9566 | Inverted |
| 9567 | Inverted |
| 9568 | 28.575 MM |
| 9568 | 1.125 IN |
| 9570 | Integral |
Additional Information
| Harmonized Tariff Code (HTS) | 8413919050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890009757 |
Part Interchanges
CENTRIC 130.66016 Cross Reference
We have 3 alternatives for the 130.66016 by CENTRIC:
Fits Vehicles
- GMC P15/P1500 Van (1974)
- GMC G25/G2500 Van (1974)
- Chevrolet P10 Van (1974)
- Chevrolet G20 Van (1974)
- GMC P1500 (1979-1980)
- GMC P15 (1975-1978)
- GMC G2500 (1979-1980)
- GMC G25 (1975-1978)
- GMC G1500 (1979-1980)
- GMC G15 (1976-1978)
- Chevrolet P10 (1975-1980)
- Chevrolet G20 (1975-1980)
- Chevrolet G10 (1976-1980)
