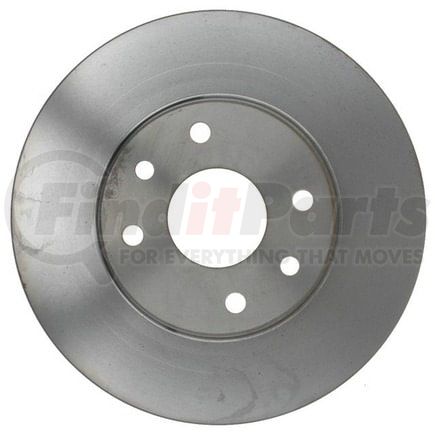

(888) 312-8812 Login SignupRAYBESTOS 96144R Raybestos R-Line Brake Rotor
MSRP: $25.68
$2299
Save $2.69
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 17
RAYBESTOS 96144R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
1993-1990 Geo Storm Front, 1992-1990 Isuzu Impulse Front, 1992-1991 Isuzu Stylus Front, 1993 Asuna Sunfire Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96144R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.245 IN |
| Center Hole Diameter | 57 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.811 IN |
| Discard Thickness | 20.6 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 0.493 IN |
| Mounting Bolt Hole Diameter | 12.5 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.865 IN |
| Nominal Thickness | 21.95 MM |
| Outside Diameter | 9.765 IN |
| Outside Diameter | 248.05 MM |
| Overall Height | 1.785 IN |
| Overall Height | 45.35 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352370049 |
RAYBESTOS 96144R Cross References
| Brand | Part Number |
|---|---|
| 829352370049 | |
| ACDELCO | 177-700 |
| ADVANCE AUTO PARTS | 141546, YH141546, YH141546C |
| AMERICAN REMANUFACTURED | 789-10011, 89-10011 |
| AUTOSPECIALTY | JBR560, JBR560E |
| AUTOXTRA | 125002, 8096144, AX31000 |
| AUTOZONE | 31000, 31000B, 31000DG, DL31000 |
| BECK/ARNLEY | 080-2427, 083-2427 |
| BENDIX | 141546 |
| BRAKE PRO | 4616144 |
| BRAKEBEST | 81-125002, 96144, 96144R, 96144RGS, BD125002 |
| BREMBO | 09.6875.10, 25460 |
| Bridgestone | 7008141 |
| CALIFORNIA DRUM & ROTOR | 125002 |
| CENTRIC | 120.43010, 121.43010 |
| CENTURY | 9464 |
| Casting Numbers | 210577-C, 211550-DP, 325000, 68999 |
| Centric Parts | 120.43010, 121.43010 |
| DELPHI | RB84 |
| DURA CORP | BR31000 |
| DuraGo | BR31000 |
| EIS BRAKES | D17529 |
| EUROROTOR | IS989 |
| GM | 94387587, 94387591 |
| GREN | 31000, 901102 |
| GUARDIAN | 52-125002 |
| General Motors | 94387587, 94387591 |
| ISUZU | 8943875871, 8943875910, 8943875911 |
| ITM ENGINE COMPONENTS | 1601913 |
| MAGMA PRODUCTS | PMR223045 |
| MCI | 3858 |
| MIGHTY DISTRIBUTING SYSTEM | 31000 |
| MONROE BRAKES | BD125002 |
| NEWTEK AUTOMOTIVE | 31000 |
| Newtek Automotive USA | 31000 |
| PARTS MASTER | P125002 |
| PROMAX | 14-31000 |
| QUALIS | 31000 |
| QUALITEE INTERNATIONAL | 64-73-160 |
| QUALITY BRAND | 31000, Q238 |
| ROADMATES | 526680 |
| STANDARD ROTORS AND DRUMS | 31000 |
| THE UNIVERSAL GROUP | 101001 |
| TRUSTAR | 473160, R73160 |
| UAP | 31000 |
| Universal | 101001 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50676 |
| WAGNER | BD125002 |
| WAGNER BRAKE | BD125002, SB96144 |
| WINHERE | 442295, YH2295 |
RAYBESTOS 96144R Fits Vehicles
- Asuna Sunfire (1993)
- Geo Storm (1990-1993)
- Isuzu Stylus (1991-1992)
- Isuzu Impulse (1990-1992)
