(888) 312-8812 Login SignupRAYBESTOS 96156R Raybestos R-Line Brake Rotor
MSRP: $46.12
$3799
Save $8.13
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
RAYBESTOS 96156R Part Description
Manufacturer
Product Description

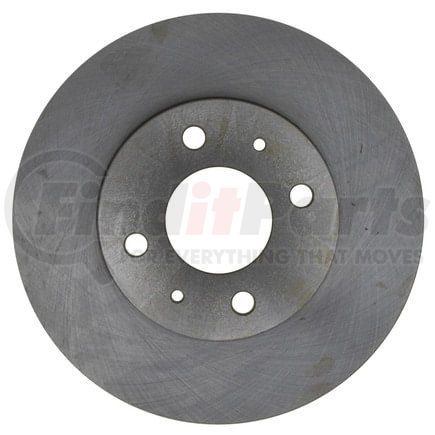

Raybestos R-Line Brake Rotor
Application Summary
1994-1991 Nissan Sentra Front, 1989-1988 Nissan Pulsar NX Front, 1993-1991 Nissan NX Front, 1996-1993 Nissan Tsuru Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96156R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.404 IN |
| Center Hole Diameter | 61.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.63 IN |
| Discard Thickness | 16 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 100 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.71 IN |
| Nominal Thickness | 18.05 MM |
| Outside Diameter | 9.835 IN |
| Outside Diameter | 249.8 MM |
| Overall Height | 1.78 IN |
| Overall Height | 45.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352370100 |
RAYBESTOS 96156R Cross References
| Brand | Part Number |
|---|---|
| 829352370100 | |
| ADVANCE AUTO PARTS | 141537, YH141537, YH141537C |
| AMERICAN REMANUFACTURED | 789-04052, 89-04052 |
| AUTOPART INTERNATIONAL | 78388 |
| AUTOSPECIALTY | JBR554, JBR554E |
| AUTOXTRA | 61887, 8096156, AX3209 |
| AUTOZONE | 3209, 3209DG, DL3209 |
| BECK/ARNLEY | 080-2390, 083-2390 |
| BENDIX | 141537 |
| BRAKE HEADQUARTERS | BR04111 |
| BRAKE PRO | 4612131, 4616156 |
| BRAKEBEST | 96156, 96156R, 96156RGS |
| BREMBO | 09.5746.10, 25392, 25393 |
| CALIFORNIA DRUM & ROTOR | 61887 |
| CENTRIC | 120.42052, 121.42052, 126.42052CSL, 126.42052CSR, 126.42052SL, 126.42052SR, 127.42052L, 127.42052R, 227.42052L, 227.42052R |
| Casting Numbers | 210966-C, 32091, 325780 |
| Centric Parts | 120.42052, 121.42052, 126.42052CSL, 126.42052CSR, 126.42052SL, 126.42052SR, 127.42052L, 127.42052R, 227.42052L, 227.42052R |
| DATSUN/NISSAN | 4020658Y01 |
| DELPHI | RB83 |
| DURA CORP | BR3209 |
| DuraGo | BR3209 |
| EIS BRAKES | D17576 |
| EUROROTOR | NI403 |
| GREN | 32102 |
| INTERBRAKES | NS481V |
| MIDAS | BR1756, BR1771 |
| MIGHTY DISTRIBUTING SYSTEM | 3209 |
| NEWTEK AUTOMOTIVE | 3209 |
| Newtek Automotive USA | 3209 |
| Nissan | 4020658Y01 |
| QUALIS | 3209 |
| QUALITEE INTERNATIONAL | 64-76-660 |
| QUALITY BRAND | 3209 |
| STANDARD ROTORS AND DRUMS | 31127, 3209 |
| THE UNIVERSAL GROUP | 109090 |
| TRUSTAR | 476660, R76660 |
| TRW | DF2675S |
| UAP | 3209 |
| Universal | 109090 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50466 |
| WINHERE | YH2106 |
RAYBESTOS 96156R Fits Vehicles
- Nissan Tsuru (1993-1996)
- Nissan NX (1991-1993)
- Nissan Sentra (1991-1994)
- Nissan Pulsar NX (1988-1989)
