(888) 312-8812 Login SignupRAYBESTOS 7896R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

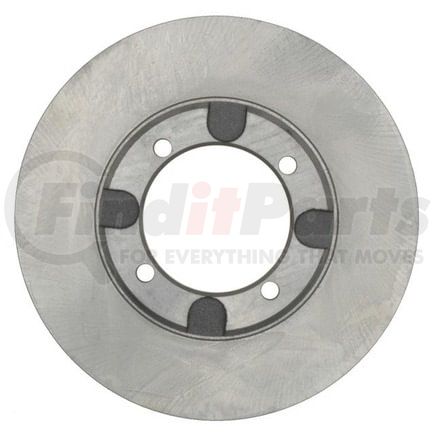

RAYBESTOS 7896R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
1991-1985 Dodge Colt Front, 1991-1985 Plymouth Colt Front, 1990-1985 Mitsubishi Mirage Front, 1991 Eagle Summit Front, 1983 Mitsubishi Tredia Front, 1983 Mitsubishi Cordia Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 7896R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.388 IN |
| Center Hole Diameter | 86.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.449 IN |
| Discard Thickness | 11.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.095 IN |
| Mounting Bolt Hole Circle Diameter | 104 MM |
| Mounting Bolt Hole Diameter | 4.095 IN |
| Mounting Bolt Hole Diameter | 104 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.512 IN |
| Nominal Thickness | 13 MM |
| Outside Diameter | 9.565 IN |
| Outside Diameter | 242.95 MM |
| Overall Height | 1.33 IN |
| Overall Height | 33.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352367315 |
RAYBESTOS 7896R Cross References
| Brand | Part Number |
|---|---|
| 829352367315 | |
| ADVANCE AUTO PARTS | 141323, YH141323 |
| AMERICAN REMANUFACTURED | 789-16010, 89-16010 |
| AUTOPART INTERNATIONAL | 78284 |
| AUTOSPECIALTY | JBR167, JBR167E |
| AUTOXTRA | 60777, 807896, AX3160 |
| AUTOZONE | 3160 |
| AXXIS | 085-6790 |
| BECK/ARNLEY | 080-2118, 083-2118 |
| BENDIX | 141323 |
| BRAKE HEADQUARTERS | BR10314 |
| BRAKE PRO | 4619045 |
| BRAKEBEST | 7896, 7896R, 7896RGS, BD60777 |
| BREMBO | 08.4786.10, 25109 |
| CALIFORNIA DRUM & ROTOR | 60777 |
| CENTRIC | 120.46008, 121.46008 |
| CENTURY | 9045 |
| CHRYSLER | MB238076, MB316676 |
| Casting Numbers | 210343-C, 31601, 325066, 6839 |
| Centric Parts | 120.46008, 121.46008 |
| DAYTON WALTHER | D7348 |
| DELPHI | RB114 |
| DURA CORP | BR3160 |
| DuraGo | BR3160 |
| EIS BRAKES | D17288 |
| EUROROTOR | MI309 |
| GIRLING | GR819 |
| GREN | 610401 |
| GUARDIAN | 52-60777 |
| HOLLANDER | 58044 |
| INTERBRAKES | DG071P |
| ITM ENGINE COMPONENTS | 1600312 |
| MCI | 3863, 3982 |
| MIDAS | BR1430, BR1473 |
| MIGHTY DISTRIBUTING SYSTEM | 3160 |
| MITSUBISHI | MB238076, MB316676 |
| MONROE BRAKES | BD60777 |
| NEWTEK AUTOMOTIVE | 3160 |
| Newtek Automotive USA | 3160 |
| PARTS MASTER | P60777 |
| QUALIS | 3160 |
| QUALITEE INTERNATIONAL | 64-75-120 |
| QUALITY BRAND | 3160 |
| QUINTON HAZELL | BDC3533 |
| ROADMATES | 526576 |
| ROCKHILL | 3160 |
| STANDARD ROTORS AND DRUMS | 3160 |
| THE UNIVERSAL GROUP | 103600 |
| TRUSTAR | 475120, R75120 |
| TRW | DF1997 |
| UAP | 3160 |
| Universal | 103600 |
| VERA | 3402714 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50390 |
| WAGNER | BD60777 |
| WAGNER BRAKE | BD60777 |
| WINHERE | YH1054 |
| WORLDPAC | 1407-78284 |
RAYBESTOS 7896R Fits Vehicles
- Mitsubishi Mirage (1985-1990)
- Mitsubishi Cordia (1983)
- Mitsubishi Tredia (1983)
- Plymouth Colt (1985-1991)
- Eagle Summit (1991)
- Dodge Colt (1985-1991)
RAYBESTOS 7896R Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 7896R Questions & Answers
No questions yet
Be the first to ask a question about this product!
