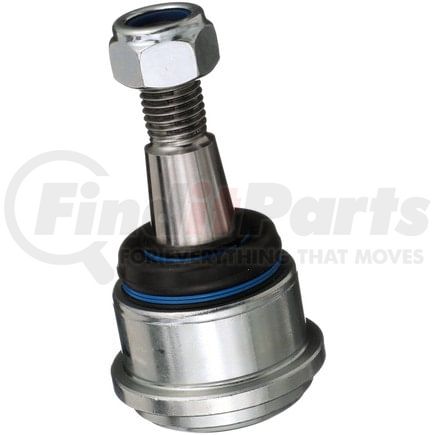

Delphi TC7772 - Ball Joint
$6099
In stock
limited availability at this price!
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 2.111 IN |
| Maximum Outside Diameter | 53.70 MM |
| Color | Gray |
| Adjustment Range | 0.480 IN |
| 190 | 12.19 MM |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | No |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Dust Boot Included | No |
| Ball Joint Assembly | Yes |
| Width | 53.7 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | No |
| Washers Included | No |
| Height | 2.110 IN |
| Height | 53.70 MM |
| Nuts Included | No |
| Adjustable | Yes |
| Greasable | Yes |
| 4966 | 1.14 IN |
| Stud Thread Length | 29 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 2 IN |
| 9212 | 0.85 IN |
| Stud Tapered End 2 Diameter | 21.51 MM |
| 9213 | 0.713 IN |
| Stud Tapered End 1 Diameter | 18.11 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 3.940 IN |
| Length | 100.00 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604384145 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Ram 3500 (2011-2022)
- Ram 2500 (2011-2022)
- Dodge Ram 3500 (2003-2010)
- Dodge Ram 2500 (2003-2010)
