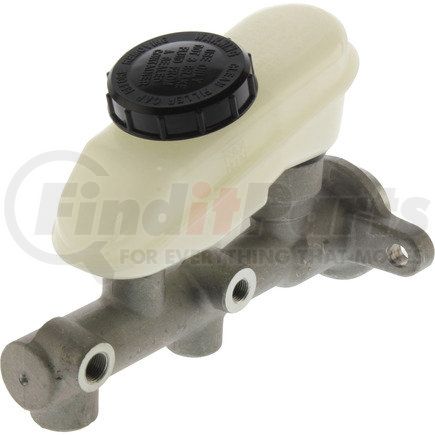

Centric 130.61004 - Centric Premium Brake Master Cylinder
$6049
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Brake Master Cylinder
Features & Benefits
- Match O.E. parts in quality; configuration and fitment. Complete with reservoirs; switches and floats. Original aluminum casting body design where applicable. Manufactured under the highest quality standards by OEM and OES manufacturers
Product Attributes
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | M12-1.00 bbl |
| Weight [cntrc] Kgs | 0.85 |
| Product Grade [cntrc] | Premium |
| Boss, Nipple Or Port: Bottom [cntrc] | M18-1.50 valve |
| Master Cylinder Bore Diameter Secondary [cntrc] Mm | 20.600 |
| Publication Bore [cntrc] | 28.6mm - 20.6mm |
| Boss, Nipple Or Port: Rear: #a [cntrc] | M10-1.00 bbl |
| Master Cylinder Bore Diameter Secondary [cntrc] In | 0.811 |
| Push Rod: Length / Depth [cntrc] In | 0.69 |
| Weight [cntrc] Lbs | 1.88 |
| Primary Outlet Flare Type [cntrc] | Bubble |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Pushrod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Primary Outlet Thread Diameter | 10.000 MM |
| Bleeder Hoses Included | No |
| Port Quantity | 3 |
| Mounting Bracket Included | No |
| Primary Outlet Thread Pitch | 1.00 MM |
| Bore Type | Stepped |
| 9557 | M10-1.00 |
| 9566 | Bubble |
| 9568 | 28.600 MM |
| 9568 | 1.126 IN |
| 9569 | 20.600 MM |
| 9569 | 0.811 IN |
| 9570 | Removable |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8413919050 |
| UPC | 805890006398 |
Part Interchanges
CENTRIC 130.61004 Cross Reference
We have 3 alternatives for the 130.61004 by CENTRIC:
Fits Vehicles
- Mercury Topaz (1984-1994)
- Ford Tempo (1984-1994)
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
