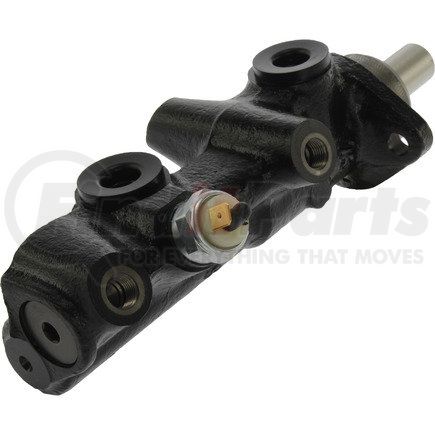

Centric 130.35003 - Centric Premium Brake Master Cylinder
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric Premium Brake Master Cylinder
Features & Benefits
- Match O.E. parts in quality; configuration and fitment. Complete with reservoirs; switches and floats. Original aluminum casting body design where applicable. Manufactured under the highest quality standards by OEM and OES manufacturers
Product Attributes
| Boss, Nipple Or Port: Front, Left: #b [cntrc] | M12-1.00 bbl |
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | M10-1.00 bbl |
| Publication Bore [cntrc] | 23mm - 19mm |
| Weight [cntrc] Lbs | 3.1 |
| Push Rod: Length / Depth [cntrc] In | 1.92 |
| Master Cylinder Bore Diameter Secondary [cntrc] In | 0.748 |
| Boss, Nipple Or Port: Rear: #a [cntrc] | M10-1.00 bbl |
| Boss, Nipple Or Port: Rear, Right: #a [cntrc] | M10-1.00 bbl |
| Primary Outlet Flare Type [cntrc] | Bubble |
| Secondary Outlet Flare Type [cntrc] | Bubble |
| Weight [cntrc] Kgs | 1.41 |
| Master Cylinder Bore Diameter Secondary [cntrc] Mm | 19.000 |
| Product Grade [cntrc] | Premium |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | No |
| Master Cylinder Material | Cast Iron |
| Pushrod Included | No |
| Reservoir Included | No |
| Primary Outlet Thread Diameter | 10.000 MM |
| Secondary Outlet Thread Diameter | 10.000 MM |
| Bleeder Hoses Included | No |
| Port Quantity | 3 |
| Mounting Bracket Included | No |
| Secondary Outlet Thread Pitch | 1.00 MM |
| Primary Outlet Thread Pitch | 1.00 MM |
| Bore Type | Stepped |
| 9556 | M10-1.00 |
| 9557 | M10-1.00 |
| 9560 | Yes |
| 9561 | 1 |
| 9562 | No |
| 9566 | Bubble |
| 9567 | Bubble |
| 9568 | 23.000 MM |
| 9568 | 0.906 IN |
| 9569 | 19.000 MM |
| 9569 | 0.748 IN |
| 9570 | Removable |
Additional Information
| Harmonized Tariff Code (HTS) | 8413919050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | DE |
| UPC | 805890001348 |
Part Interchanges
Fits Vehicles
- Mercedes-Benz 450SLC (1975-1977)
- Mercedes-Benz 450SL (1975-1977)
- Mercedes-Benz 450SEL (1975-1977)
- Mercedes-Benz 450SE (1975-1976)
- Mercedes-Benz 300D (1975-1977)
- Mercedes-Benz 280SE (1977)
- Mercedes-Benz 280S (1975-1976)
- Mercedes-Benz 280E (1977-1978)
- Mercedes-Benz 280CE (1978)
- Mercedes-Benz 280C (1975-1976)
- Mercedes-Benz 240D (1976-1979)
- Mercedes-Benz 280 (1975-1976)
- Mercedes-Benz 230 (1975-1978)
