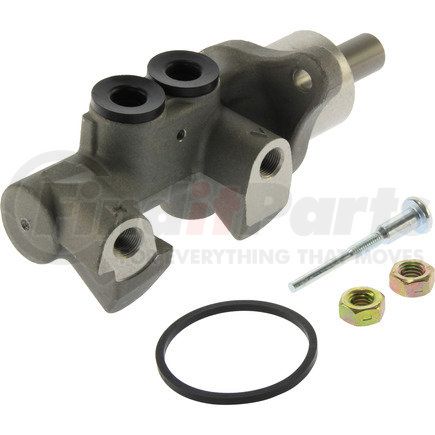

Centric 130.34106 - Centric Premium Brake Master Cylinder
$20699
MSRP: $297.99
Save: $91.00
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Brake Master Cylinder
Features & Benefits
- Match O.E. parts in quality; configuration and fitment. Complete with reservoirs; switches and floats. Original aluminum casting body design where applicable. Manufactured under the highest quality standards by OEM and OES manufacturers
Product Attributes
| Boss, Nipple Or Port: Rear: #a [cntrc] | M12-1.00 bbl |
| Master Cylinder Bore Diameter Secondary [cntrc] In | 0.866 |
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | M12-1.00 bbl |
| Master Cylinder Bore Diameter Secondary [cntrc] Mm | 22.000 |
| Push Rod: Length / Depth [cntrc] In | 1.68 |
| Weight [cntrc] Kgs | 0.77 |
| Secondary Outlet Flare Type [cntrc] | Bubble |
| Publication Bore [cntrc] | 23mm - 22mm |
| Weight [cntrc] Lbs | 1.7 |
| Product Grade [cntrc] | Premium |
| Boss, Nipple Or Port: Rear, Bottom [cntrc] | M10-1.00 bbl |
| Primary Outlet Flare Type [cntrc] | Bubble |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | No |
| Master Cylinder Material | Aluminum |
| Pushrod Included | No |
| Reservoir Included | No |
| Primary Outlet Thread Diameter | 12.000 MM |
| Secondary Outlet Thread Diameter | 12.000 MM |
| Bleeder Hoses Included | No |
| Port Quantity | 3 |
| Mounting Bracket Included | No |
| Secondary Outlet Thread Pitch | 1.00 MM |
| Primary Outlet Thread Pitch | 1.00 MM |
| Bore Type | Stepped |
| 9556 | M12-1.00 |
| 9557 | M12-1.00 |
| 9566 | Bubble |
| 9567 | Bubble |
| 9568 | 23.000 MM |
| 9568 | 0.906 IN |
| 9569 | 22.000 MM |
| 9569 | 0.866 IN |
| 9570 | Removable |
Additional Information
| Harmonized Tariff Code (HTS) | 8413919050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890157311 |
Part Interchanges
Fits Vehicles
- BMW 330xi (2001-2005)
- BMW 325xi (2001-2005)
