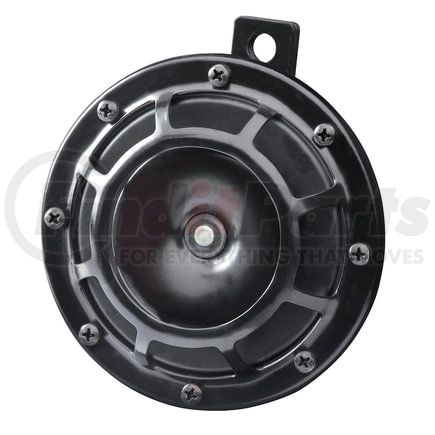

(888) 312-8812 Login SignupHELLA 003399101 Horn Supertone 24V Set 84W Black (B133)
Tap to view 4 more
MSRP: $212.46
$15349
Save $58.97
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
HELLA 003399101 Part Description
Manufacturer
Product Description
HELLA Accessory Horn 003399101
Features & Benefits
- With moisture protection
- Powerful Sound: Emits a loud, clear tone to ensure you're heard in traffic or emergency situations.
- Durable Construction: Built with high-quality materials to withstand harsh weather and road conditions.
- Easy Installation: Designed for quick, straightforward mounting and wiring on most vehicles.
- High-Performance Output: Provides reliable, consistent sound for long-term use without degradation.
- Universal Fit: Compatible with a wide range of vehicles, from cars to trucks, for versatile use.
HELLA 003399101 Specifications
Product Attributes
| Supplementary Article/Info 2 | with rubber grommet |
| Temperature Range To [°c] | 75 |
| Width [mm] | 125 |
| Sound Level [dB(A)] | 110 |
| Protection Type (IP Code) | X4K |
| Frequency Range [hz] | 500 |
| Assy./disassy. By Qualified Personnel Required! | . |
| Interference suppressed | . |
| Depth [mm] | 85 |
| Registration Type | ECE Approved |
| Quantity Unit | Kit |
| Special Purpose Vehicle | for Special-Purpose Vehicles |
| Voltage [V] | 24 |
| Power Consumption [w] | 84 |
| Quantity | 2 |
| Temperature Range From [°c] | -40 |
| Diameter [mm] | 123 |
| Overall Height [mm] | 135 |
| Test Mark | ECE-R28 |
| Mounting Type | with 6.3 mm Blade Terminal Contacts, Open |
| Housing Colour | Black |
| Signal | Low Tone |
| Frequency Range From [hz] | 375 |
| Frequency Range To [hz] | 500 |
| Protection | IP65 |
| Set includes | (1) High-Tone Disc Horn, (1) Low-Tone Disc Horn, Mounting Brackets, Step-by-Step Mounting Instructions |
| Diameter [cm] | 12.3 |
| Bracket | M8 Mounting Screw |
| Diameter [in] | 4.84 |
| Homologation | ECE-R28 |
| Measurements [cm] | 8.5 x 12.5 |
| Vehicle configuration line / variant | for Special-Purpose Vehicles |
| Supplementary Article/Supplementary Info 2 | with Condenser |
| Wattage [W] | 84 |
| Mounting Bracket Included | Yes |
| Ip Rating | IPX7 |
| Assy/Disassy by Qualified Personnel Required! | . |
| Housing Color | Black |
| Voltage [VDC] | 24.00 |
| Power Consumption [a] | 3.5 |
| Overall Height [in] | 5.31 |
| Depth [in] | 3.35 |
| Temperature range from [°F] | -40 |
| Width [in] | 4.92 |
| Temperature range to [°F] | 167 |
| ECE Regulation | R28 |
| Operating Mode | Electric |
| California Proposition 65 Required | No |
| Decibel Rating [dB] | 110.00 |
| Mount Type | Bracket Mounting |
| Color | Black |
| Terminal Type | Blade |
| Mounting Hardware Included | Yes |
| Grade Type | Standard Replacement |
| Terminal Quantity | 2 |
Additional Information
| Harmonized Tariff Code (HTS) | 8512300020 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | IN |
| UPC | 04082300026290 |
HELLA 003399101 Cross References
| Brand | Part Number |
|---|---|
| Fiat | 42080296 |
| John Deere | 55 02 8 |
| Mercedes-Benz | 003 542 45 20, 717 193 55 20, A 003 542 45 20, A 717 193 55 20 |
| N/A | NT006881, 2602-770-105, 660760222, BN043325, 4208 0296, 1512.100.00, 667251, 614001208, 6 204 593, 6 140 461 14, 10675526, 20E-06-H9150, 7171935520, 7.171.93.552.0, B240500000012, 407711 |
