Centric 130.11001 - Centric Premium Brake Master Cylinder
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description

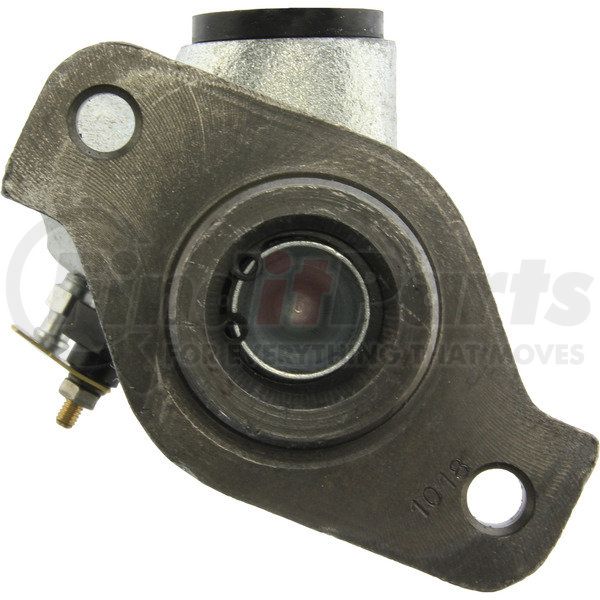

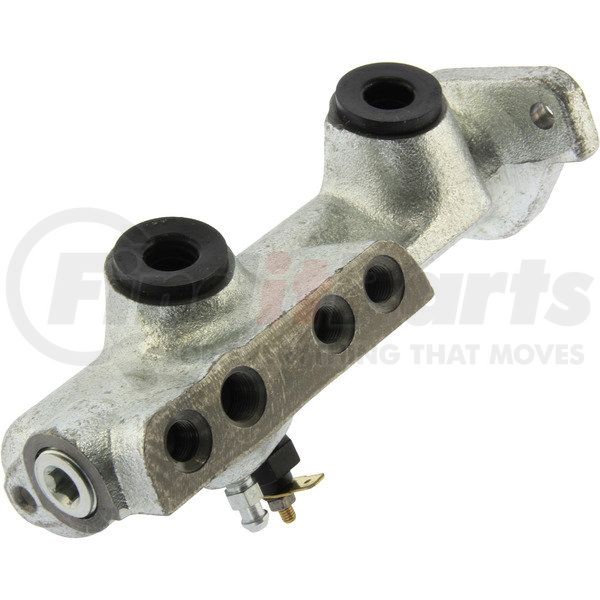

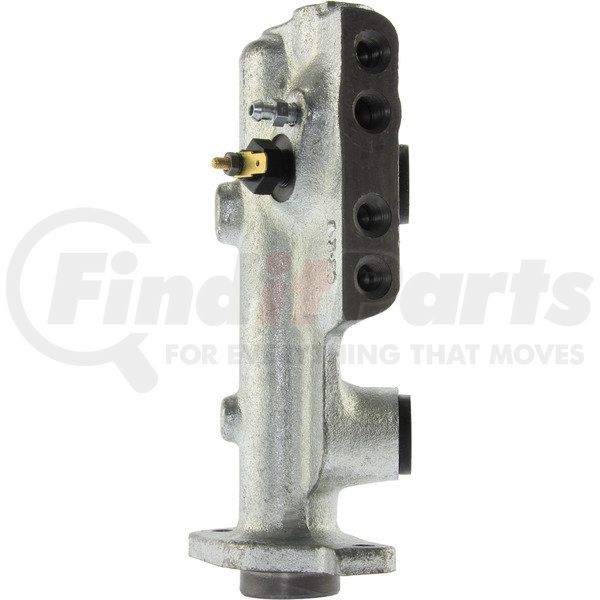

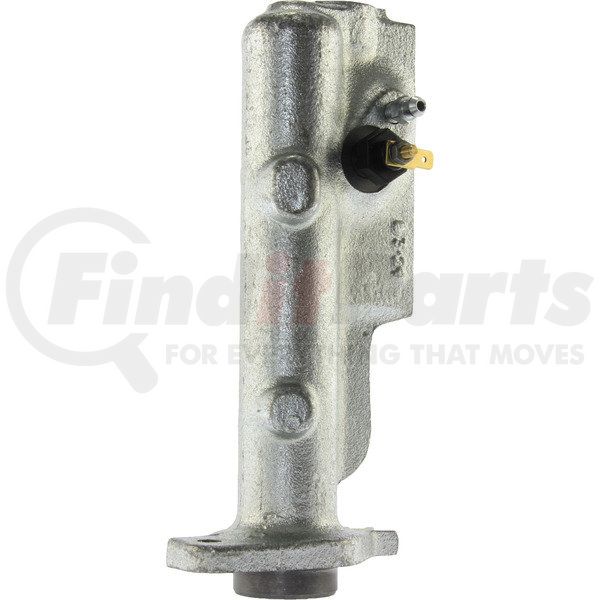

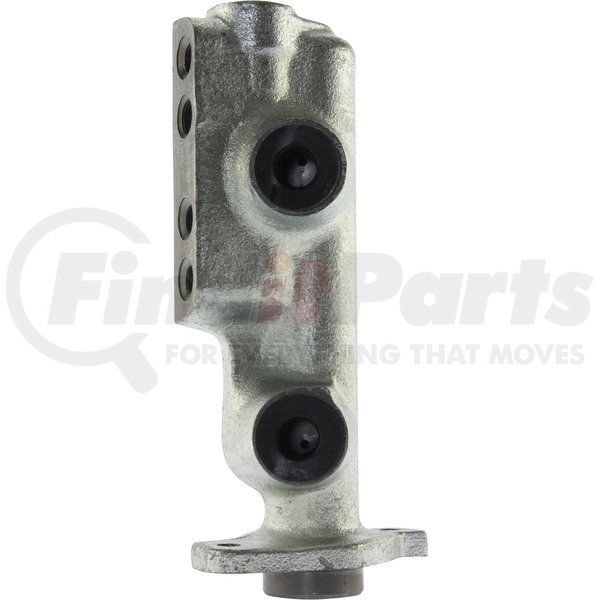

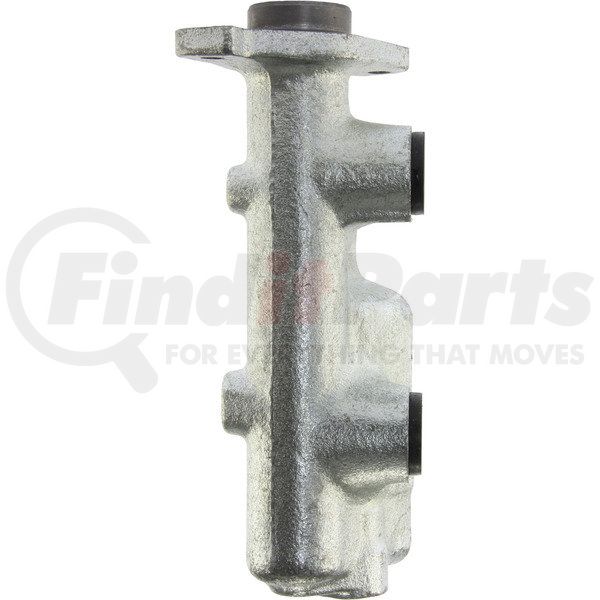

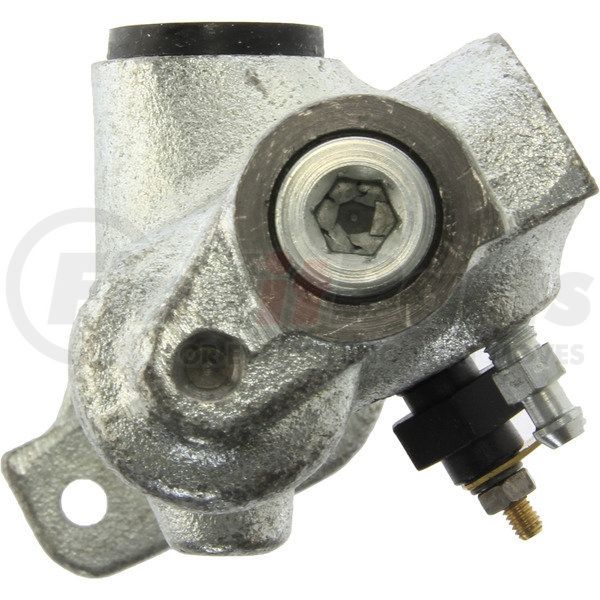

Centric Premium Brake Master Cylinder
Features & Benefits
- Match O.E. parts in quality; configuration and fitment. Complete with reservoirs; switches and floats. Original aluminum casting body design where applicable. Manufactured under the highest quality standards by OEM and OES manufacturers
Product Attributes
| Secondary Outlet Flare Type [cntrc] | Bubble |
| Weight [cntrc] Lbs | 1.5 |
| Boss, Nipple Or Port: Rear: #a [cntrc] | M10-1.00 bbl |
| Push Rod: Length / Depth [cntrc] In | 0.812 |
| Primary Outlet Flare Type [cntrc] | Bubble |
| Boss, Nipple Or Port: Center, Bottom [cntrc] | M12-1.00 open |
| Product Grade [cntrc] | Premium |
| Boss, Nipple Or Port: Front, Left: #b [cntrc] | M12-1.00 bbl |
| Publication Bore [cntrc] | 19mm |
| Weight [cntrc] Kgs | 0.68 |
| Boss, Nipple Or Port: Rear: #b [cntrc] | M10-1.00 bbl |
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | M10-1.00 bbl |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 19.000 MM |
| Master Cylinder Bore Diameter | 0.748 IN |
| Bleeder Screw Included | Yes |
| Brake Booster Included | No |
| Master Cylinder Cap Included | No |
| Master Cylinder Material | Cast Iron |
| Pushrod Included | No |
| Reservoir Included | No |
| Primary Outlet Thread Diameter | 10.000 MM |
| Secondary Outlet Thread Diameter | 12.000 MM |
| Bleeder Hoses Included | No |
| Port Quantity | 4 |
| Mounting Bracket Included | No |
| Secondary Outlet Thread Pitch | 1.00 MM |
| Primary Outlet Thread Pitch | 1.00 MM |
| Bore Type | Straight |
| 9425 | 19.000 MM |
| 9425 | 0.748 IN |
| 9556 | M12-1.00 |
| 9557 | M10-1.00 |
| 9559 | 1 |
| 9560 | Yes |
| 9561 | 1 |
| 9562 | No |
| 9566 | Bubble |
| 9567 | Bubble |
| 9568 | 19.000 MM |
| 9568 | 0.748 IN |
| 9570 | Removable |
Additional Information
| Harmonized Tariff Code (HTS) | 8413919050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | IT |
| UPC | 805890000167 |
Part Interchanges
Fits Vehicles
- Renault R5 (1976)
- Renault R17 (1975-1979)
- Renault R15 (1976)
- Renault LeCar (1977-1983)
