URO GM0517242 - gm0517242
$6399
In stock
limited availability at this price!
. Learn more
URO part description
Product Description

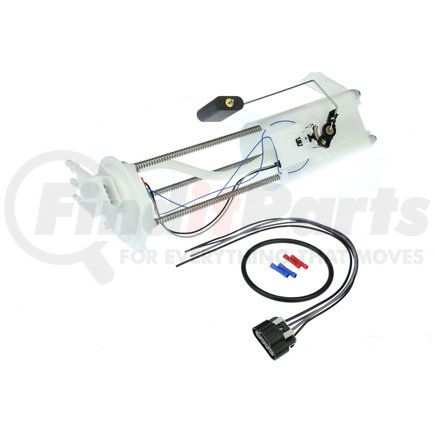

Fuel Pump Assembly
Features & Benefits
- Precision armature bearings for quiet operation and reduced vibration
Product Attributes
| Fuel Sending Unit Included | Yes |
| Negative Ground | Yes |
| Inlet Outside Diameter | 7.75 MM |
| Outlet Outside Diameter | 9.4 MM |
| Voltage | 12 |
| Length | 93.5 MM |
| Fuel Type | Gas |
| Housing Width | 93.5 MM |
| Wiring Harness Length | 415 MM |
| Connector Color | Black |
| Inlet Thread Diameter | NA |
| Outlet Thread Diameter | NA |
| Regulator Included | No |
| Maximum Pressure | Na |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Height | 378 MM |
| Universal Or Specific Fit | Specific |
| Housing Length | 93.5 MM |
| Wire Quantity | 4 |
| Grade Type | Regular |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | POM |
| Terminal Quantity | 4 |
| Top Mount Diameter | 93.6 MM |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Maximum Flow Rating | 35.6 GPH |
| Strainer Included | Yes |
| Inlet Type | Hose |
| Outlet Type | Hose |
| Inlet Quantity | 2 |
| Outlet Quantity | 1 |
| Fuel Filter Included | No |
| In Tank or External | In Tank |
| Inlet Fitting Thread Size | NA |
| Resistance Ohms Empty | 40.5 |
| Resistance Ohms Full | 247 |
| Gasket Or Seal Material | NBR |
| Minimum Free Flow Rate | NA |
| Minimum Pressure | NA |
| Internal Or External Strainer | External |
| Wire Harness Included | Yes |
| Outlet Fitting Thread Size | NA |
| Pump Design | In tank |
| Average Current Draw | 8.1 |
| Fuel Tank Pressure Sensor Included | No |
| Minimum Flow Rating | 41 GPH |
| Average Flow Rating | 38 GPH |
| Pump Type | Electric |
| Amperage (a) | 8.1 A |
| Bracket Included | No |
| Electric Or Mechanical | Electric |
| Fill Vapor Valve Included | No |
| Flow Rate (gph) | 38 gph |
| Flow Restriction Pressure (psi) | NA |
| Fuel Level Sensor Assembly Included | Yes |
| Fuel Level Vent Valve (flvv) Included | No |
| Fuel Pressure Regulator Included | No |
| Fuel Static Pressure (psi) | NA |
| Gasket or Seal Included | Yes |
| Hardware Included | No |
| In-line Pump | No |
| Inlet Attachment Method | Hose |
| Inlet Diameter (in) | .31 in |
| Inlet Diameter (mm) | 9.4 mm |
| Inlet Fitting Type | Hose |
| Manufacturer | Autotecnica |
| Maximum Free Flow Rate (gph) | NA |
| Maximum Pressure (psi) | NA |
| Minimum Free Flow Rate (gph) | NA |
| Module Included | Yes |
| Number of Connectors | 1 |
| Number of Mounting Holes | 0 |
| Oe Part/casting Number | 19331271 |
| Outlet Diameter (in) | .37 In |
| Outlet Diameter (mm) | 7.75 mm |
| Outlet Fitting Type | Hose |
| Rheostat Range (ohm) | 40.5-247 Ohm |
| Rollover Valve Included | No |
| Shut Off Pressure (psi) | NA |
| Strainer Location | External |
| Tank Seal Included | Yes |
| Thermistor Low Fuel Indicator Included | No |
| Vapor Pressure Sensor Included | No |
| Vapor Vent Line Included | No |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00194316110994 |
Part Interchanges
Fits Vehicles
- GMC K3500 (1998-2000)
- GMC K2500 (1998-2000)
- GMC C3500 (1998-2000)
- GMC C2500 (1998-2000)
- Chevrolet K3500 (1998-2000)
- Chevrolet K2500 (1998-2000)
- Chevrolet C3500 (1998-2000)
- Chevrolet C2500 (1998-2000)
