Dorman BJ43023XL - Suspension Ball Joint
$5349
In stock
limited availability at this price!
. Learn more
DORMAN part description
Product Description

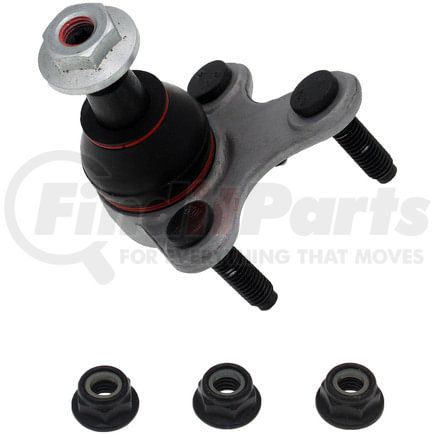

Suspension Ball Joint
Application Summary
Audi 2022-14, Audi 2012-08, Seat 2022-14, Volkswagen 2022-06
Features & Benefits
- Extended-life construction - this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers
- Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
- Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
- Premium corrosion resistance - WeatherShield external coating to resist corrosion
Suspension, Ball, Joint, Joints, Balls, Suspensions
Product Attributes
| Material | Acero |
| Length | 99.17 MM |
| Color | Noir |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Non |
| Grease Fitting Included | Non |
| Suspension Grade Type | Rendimiento |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Ball Joint Assembly | Oui |
| Width | 66.47 MM |
| Type | Con perno |
| Cotter Pin Included | Non |
| Cotter Pin Hole | Non |
| Mounting Hardware Included | Oui |
| Mounting Bolt Length | 33 MM |
| Washers Included | Non |
| Height | 84.91 MM |
| Nuts Included | Oui |
| Mounting Hole Quantity | 3 |
| Adjustable | Non |
| Greasable | Non |
| Stud Thread Length | 18 MM |
| Mounting Hole Diameter | 10 MM |
| Wrench Size | 12 mm MM |
| Stud Type | Cónico |
| Mounting Type | Con perno |
| Distance Between Mounting Holes | 66.5 MM |
| Dust Boot Material | Policloropreno |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter | 8.75 MM |
| Mounting Bolt Head Diameter | 17.89 MM |
| Mounting Bolts Included | Oui |
| Mounting Bolt Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Length | 24.98 MM |
| Mounting Bolt Thread Diameter | 10 MM |
| Mount Plate Included | Oui |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 0.1 IN |
| Stud Tapered End 2 Diameter | 15.2 MM |
| Stud Tapered End 1 Diameter | 21.3 MM |
| Stud Thread Pitch | 1.5 MM |
| Attachment Type | Con perno |
| Ball Joint Installed | Oui |
| Bearing Material | Polímero |
| Bolts/Studs Included | Oui |
| Bushing Included | Non |
| Housing Press Fit Diameter | 0 |
| Package Contents | 3 Bolts |
| Thread Pitch | 1.5 mm |
| Maximum Outside Diameter | 61 MM |
| Articulación de rótula instalada | Sí |
| Contenidos del paquete | 3 tornillos |
| Pernos/argollas incluidos | Sí |
| Thread Pitch | 1,5mm mm |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 4016995010 |
| UPC | 00194883283411 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Seat Formentor (2021)
- Seat Arona (2018-2022)
- Volkswagen Taos (2021-2022)
- Seat Tarraco (2019-2022)
- Audi Q3 (2019-2022)
- Volkswagen Arteon (2019-2022)
- Volkswagen Jetta (2019-2022)
- Audi Q2 Quattro (2018-2020)
- Audi Q2 (2018-2022)
- Volkswagen Tiguan (2018-2022)
- Audi RS3 (2017-2020, 2022)
- Seat Ateca (2017-2022)
- Audi RS Q3 (2017-2018, 2021-2022)
- Volkswagen Golf Alltrack (2017-2019)
- Volkswagen Golf R (2015-2019, 2022)
- Audi A3 Sportback e-tron (2016-2018)
- Volkswagen Golf SportWagen (2015-2019)
- Volkswagen Golf (2015-2021)
- Volkswagen GTI (2015-2022)
- Audi A3 Quattro (2015-2020, 2022)
- Audi A3 (2014-2020, 2022)
- Seat Leon (2014-2022)
- Volkswagen Passat CC (2009-2012)
- Audi S3 (2008-2012, 2014-2020, 2022)
- Volkswagen CC (2009-2017)
- Volkswagen Passat (2006-2010)
Dorman® is a trusted supplier of premium-quality replacement parts, hardware, and fasteners to the automotive aftermarket. Since 1918, it has introduced thousands of these replacement parts that customers could once only get from original equipment manufacturers. Dorman believes that customers should always come first. So its dedicated team of engineers and designers creates each Dorman product with only one goal in mind—to make repair tasks easier and faster for mechanics and to save vehicle owners money from expensive repairs. Dorman continually expands its product line-up to offer a broader range of hard-to-find parts and accessories that could replace rare or expensive OEM parts.
