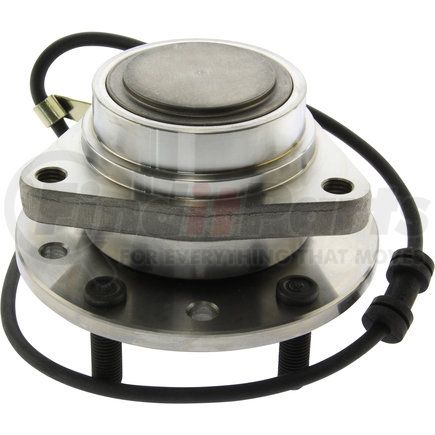

Centric 407.66002 - Centric Premium Hub and Bearing Assembly; With Integral ABS
$16849
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
CENTRIC part description
Product Description
Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
Mounting Thread Pitch [cntrc] Mm | 1.750 |
Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
Off-set [cntrc] In | 47.070 |
Inner Mount Pilot [cntrc] Mm | 88.800 |
Product Grade [cntrc] | Premium |
Off-set [cntrc] Mm | 1.853 |
Mounting Hole Qty [cntrc] | 3 |
Bolt Circle Diameter [cntrc] Mm | 120.650 |
Mouting Thread Size [cntrc] Mm | 12.000 |
Bolt Circle Diameter [cntrc] In | 4.750 |
Wheel Stud Size | 12.000 MM |
Wheel Pilot Diameter | 2.757 IN |
Wheel Pilot Diameter | 70.030 MM |
Brake Pilot Diameter | 70.430 MM |
Brake Pilot Diameter | 2.773 IN |
Wheel Stud Quantity | 5 |
Wheel Studs Included | Yes |
Flange Diameter | 5.738 IN |
Flange Diameter | 145.750 MM |
Additional Information
Harmonized Tariff Code (HTS) | 8482105016 |
NAFTA Preference Criterion Code | B |
Country of Origin (Primary) | US |
UPC | 805890568186 |
Part Interchanges
Fits Vehicles
- GMC Jimmy (1998-2004)
- Chevrolet Blazer (1998-2005)
