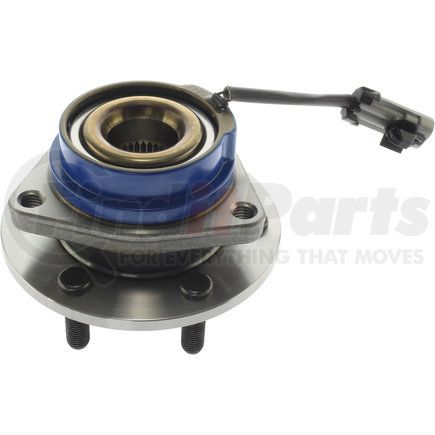

Centric 402.62009 - Centric Premium Hub and Bearing Assembly; With Integral ABS
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
| Mounting Hole Qty [cntrc] | 3 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Off-set [cntrc] In | 42.010 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Off-set [cntrc] Mm | 1.654 |
| Mounting Thread Pitch [cntrc] Mm | 1.750 |
| Inner Mount Pilot [cntrc] In | 3.598 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Product Grade [cntrc] | Premium |
| Inner Mount Pilot [cntrc] Mm | 91.390 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Notes [cntrc] | Retaining Hole 1x M6-1.0 |
| Spline Quantity | 30 |
| Wheel Stud Size | 14.000 MM |
| Wheel Pilot Diameter | 70.100 MM |
| Wheel Pilot Diameter | 2.760 IN |
| Brake Pilot Diameter | 70.490 MM |
| Brake Pilot Diameter | 2.775 IN |
| Wheel Stud Quantity | 6 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.730 IN |
| Flange Diameter | 145.540 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 805890564133 |
Part Interchanges
Fits Vehicles
- Cadillac SRX (2004-2009)
