CENTRIC part description

Product Description

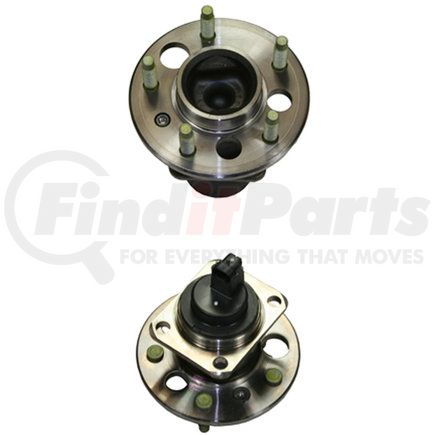

Centric Premium Hub and Bearing Assembly; With Integral ABS

Features & Benefits

  • 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017

Product Attributes

Off-set [cntrc] Mm 2.570
Notes [cntrc] Flange Holes 12 O'clock 0.988/5&7 O'clock 0.790//Retaining Hole 1x M6-1.0
Inner Mount Pilot [cntrc] Mm 71.880
Bolt Circle Diameter [cntrc] In 4.528
Mouting Thread Size [cntrc] In 0.465
Off-set [cntrc] In 65.280
Mounting Hole Qty [cntrc] 4
Thread Pitch To Wheel Mounting [cntrc] Mm 1.500
Bolt Circle Diameter [cntrc] Mm 115.000
Product Grade [cntrc] Premium
Wheel Stud Size 12.000 MM
Wheel Pilot Diameter 70.100 MM
Wheel Pilot Diameter 2.760 IN
Brake Pilot Diameter 70.610 MM
Brake Pilot Diameter 2.780 IN
Wheel Stud Quantity 5
Wheel Studs Included Yes
Flange Diameter 5.910 IN
Flange Diameter 150.110 MM

Additional Information

Harmonized Tariff Code (HTS) 8482105016
NAFTA Preference Criterion Code B
Country of Origin (Primary) US
UPC 805890567998

Part Interchanges

Fits Vehicles

  • Cadillac Seville (1993-1997)
  • Cadillac Eldorado (1993-2002)
  • Cadillac DeVille (1994-1999)
  • Cadillac Allante (1993)
