(888) 312-8812 Login SignupCENTRIC 402.65009 Centric Premium Hub and Bearing Assembly; With Integral ABS
Tap to view 6 more
$20149
Limited availability at this price!
5 Day Lead Time
Get it by Thursday, Jan 8
CENTRIC 402.65009 Part Description
Manufacturer
Product Description

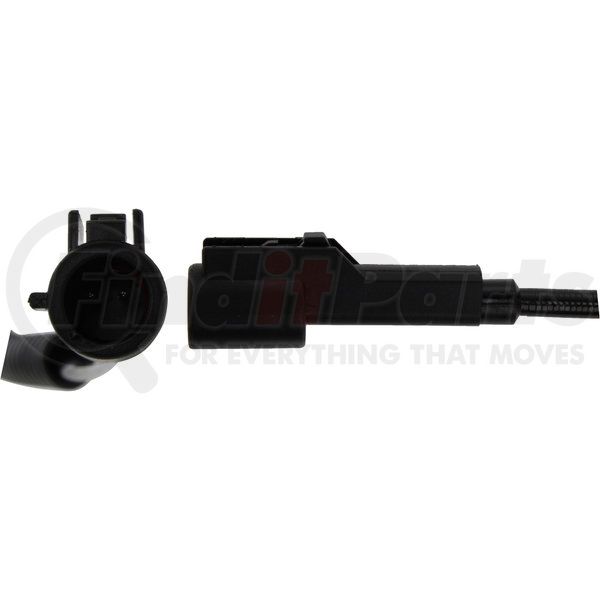

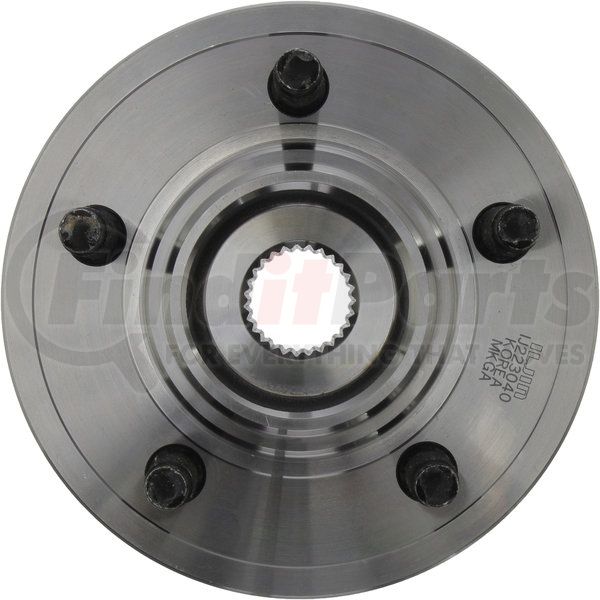

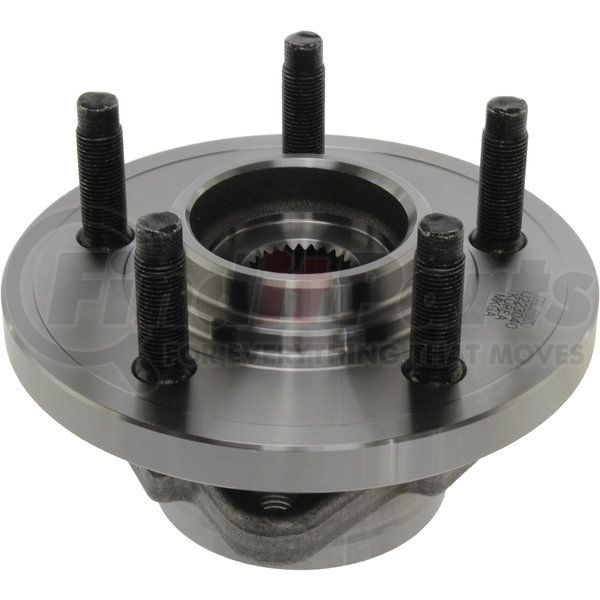

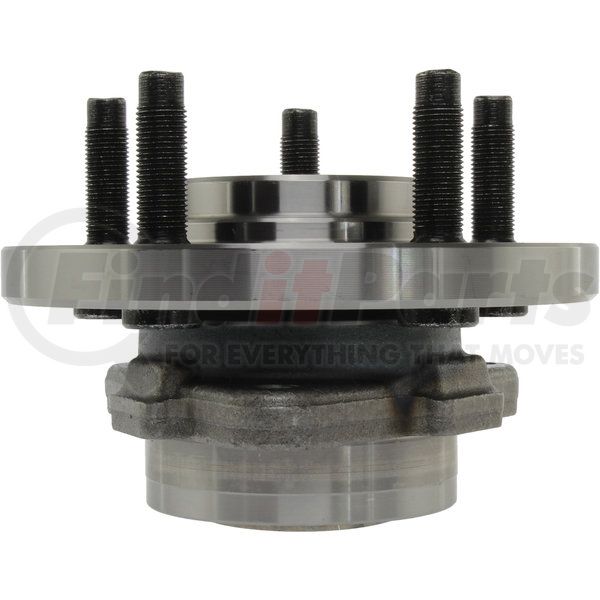

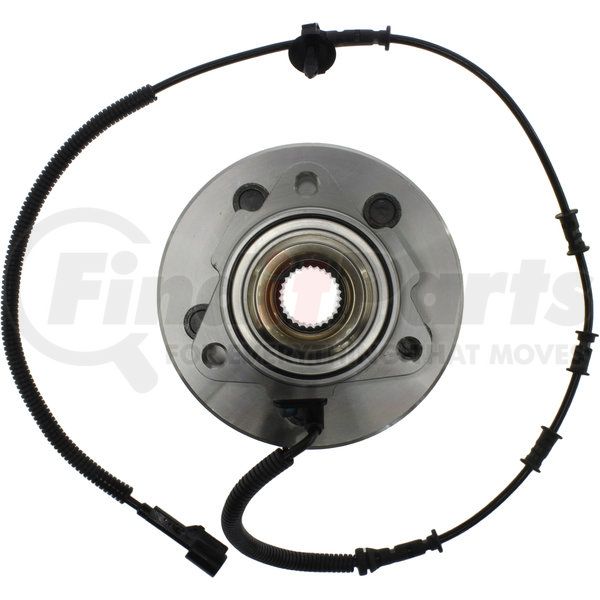

Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
CENTRIC 402.65009 Specifications
Product Attributes
| Mounting Thread Pitch [cntrc] Mm | 1.750 |
| Bolt Circle Diameter [cntrc] Mm | 115.000 |
| Inner Mount Pilot [cntrc] Mm | 84.960 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Off-set [cntrc] Mm | 1.905 |
| Bolt Circle Diameter [cntrc] In | 4.528 |
| Inner Mount Pilot [cntrc] In | 3.345 |
| Off-set [cntrc] In | 48.390 |
| Thread Pitch To Wheel Mounting [cntrc] In | 20.000 |
| Product Grade [cntrc] | Premium |
| Mounting Hole Qty [cntrc] | 3 |
| Spline Quantity | 27 |
| Wheel Stud Size | 0.500 IN |
| Wheel Pilot Diameter | 70.360 MM |
| Wheel Pilot Diameter | 2.770 IN |
| Brake Pilot Diameter | 81.860 MM |
| Brake Pilot Diameter | 3.223 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 6.299 IN |
| Flange Diameter | 159.990 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 805890564386 |
CENTRIC 402.65009 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | WH515050, SP470200, SP470201, H515050, 515050, 0204062567315, BR930456, FW750, WE60726, 1L2Z 1104AB, 1L2Z1104AB, 4L2Z 1104AA, 4L2Z1104AA |
CENTRIC 402.65009 Fits Vehicles
- Mercury Mountaineer (2002-2005)
- Lincoln Aviator (2003-2005)
- Ford Explorer (2002-2005)
