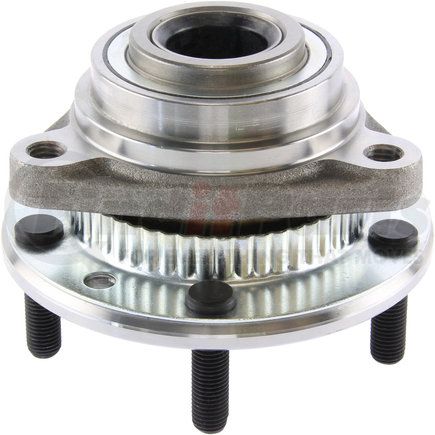

Name: Centric 401.66000E C-Tek Standard Hub and Bearing Assembly; With ABS Tone Ring / Encoder
SKU: 40166000e
Price: 63.49 USD
Availability: InStock

CENTRIC part description

Product Description

C-Tek Standard Hub and Bearing Assembly; With ABS Tone Ring / Encoder

Features & Benefits

High Quality Replacement Components. High quality steel and surface finishes reduce noise and extend service life. Exact engineering ensures smooth installation

Product Attributes

Off-set [cntrc] Mm	1.868
Thread Pitch To Wheel Mounting [cntrc] Mm	1.500
Inner Mount Pilot [cntrc] Mm	91.900
Mounting Hole Qty [cntrc]	3
Mouting Thread Size [cntrc] Mm	12.000
Notes [cntrc]	Flange Holes 1 x 0.490", 2 x 0.400"; 52t ABS Ring
Off-set [cntrc] In	47.450
Bolt Circle Diameter [cntrc] Mm	120.650
Bolt Circle Diameter [cntrc] In	4.750
Inner Mount Pilot [cntrc] In	3.618
Mounting Thread Pitch [cntrc] Mm	1.750
Product Grade [cntrc]	Premium
Spline Quantity	27
Wheel Pilot Diameter	70.080 MM
Wheel Pilot Diameter	2.759 IN
Brake Pilot Diameter	70.510 MM
Brake Pilot Diameter	2.776 IN
Flange Diameter	5.686 IN
Flange Diameter	144.420 MM

Additional Information

Harmonized Tariff Code (HTS)	8482105016
NAFTA Preference Criterion Code	B
Country of Origin (Primary)	CN
UPC	805890595731

Part Interchanges

CENTRIC 401.66000E Cross Reference

We have 1 alternatives for the 401.66000E by CENTRIC:

713061

Fits Vehicles

Oldsmobile Bravada (1991-1994, 1996-1997)
GMC Syclone (1991)
GMC Sonoma (1991, 1994-1997)
GMC S15 (1989-1990)
GMC Jimmy (1992-1997)
GMC S15 Jimmy (1990-1991)
Chevrolet S10 (1989-1997)
Chevrolet Blazer (1995-1997)
Chevrolet S10 Blazer (1990-1994)
