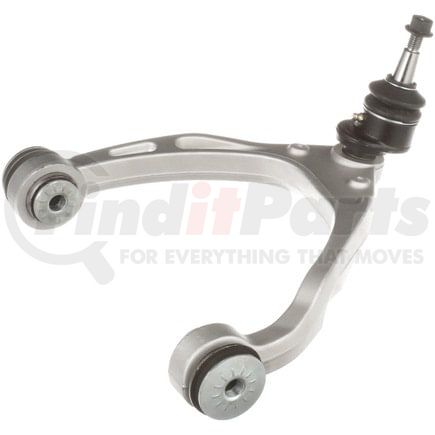

Delphi TC6951 - Control Arm and Ball Joint Assembly
$30099
5 day lead time
limited availability at this price!
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Position(s) | Front Right Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | Yes |
| Greasable | Yes |
| Control Arm Maximum Width | 14.173 IN |
| Control Arm Maximum Width | 360.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 1.000 IN |
| Ball Joint Stud Length | 25.40 MM |
| Control Arm Maximum Length | 13.386 IN |
| Control Arm Maximum Length | 340.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 0.551 IN |
| Mounting Hole Diameter | 14.00 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604381649 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
Fits Vehicles
- GMC Yukon XL (2015-2019)
- Chevrolet Suburban (2014-2019)
- Cadillac Escalade EXT (2007-2013)
- Cadillac Escalade ESV (2007-2016)
- GMC Sierra 1500 (2007-2019)
- Chevrolet Silverado 1500 (2007-2016)
- Chevrolet Suburban 1500 (2007-2014)
- Chevrolet Avalanche (2007-2013)
- GMC Yukon (2007-2019)
- Cadillac Escalade (2007-2019)
- Chevrolet Tahoe (2007-2019)
- GMC Yukon XL 1500 (2000-2014)
