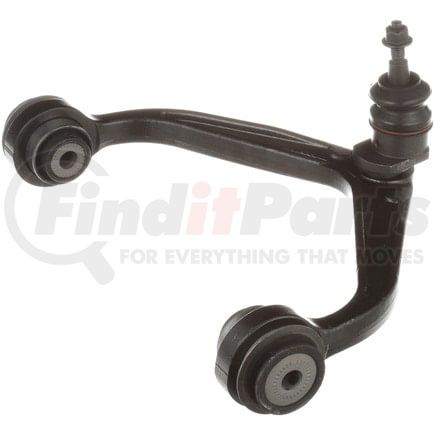

Delphi TC6942 - Control Arm and Ball Joint Assembly
$23099
5 day lead time
limited availability at this price!
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Position(s) | Front Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | Yes |
| Greasable | Yes |
| Control Arm Maximum Width | 10.236 IN |
| Control Arm Maximum Width | 260.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 0.945 IN |
| Ball Joint Stud Length | 24.00 MM |
| Control Arm Maximum Length | 15.748 IN |
| Control Arm Maximum Length | 400.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 0.551 IN |
| Mounting Hole Diameter | 14.00 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | US |
| UPC | 00689604381564 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
Fits Vehicles
- GMC Sierra 3500 HD (2011-2019)
- Chevrolet Silverado 3500 HD (2011-2019)
- GMC Sierra 2500 HD (2011-2019)
- Chevrolet Silverado 2500 HD (2011-2019)
