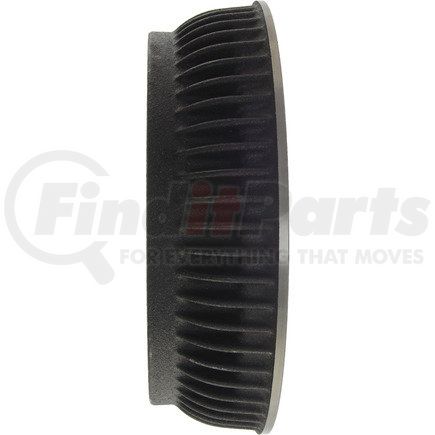

(888) 312-8812 Login SignupCENTRIC 123.66003 C-Tek Standard Brake Drum
Tap to view 4 more
$7799
Limited availability at this price!
In Stock
Get it by Friday, Jan 30
CENTRIC 123.66003 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 123.66003 Specifications
Product Attributes
| Weight [cntrc] Kgs | 9.545 |
| Weight [cntrc] Lbs | 21.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 90.424 |
| Hub Hole / Register [cntrc] In | 3.560 |
| Height [cntrc] Mm | 90.932 |
| Height [cntrc] In | 3.580 |
| Friction Surface Width [cntrc] Mm | 61.214 |
| Friction Surface Width [cntrc] In | 2.410 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 281.700 MM |
| Maximum Brake Diameter (Discard) | 11.090 IN |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 340.106 MM |
| Outside Diameter | 13.390 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 11.430 MM |
| Mounting Hole Diameter | 0.450 IN |
| Nominal Drum Diameter | 279.400 MM |
| Nominal Drum Diameter | 11.000 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890052920 |
CENTRIC 123.66003 Cross References
| Brand | Part Number |
|---|---|
| 122.66003, F1FZ14290AM | |
| N/A | BD60292, E127-71-008, E128-71-008, 8821, BD8821, 123.66003, 8821G, 3983856, 3984856, 3989543, 140255, PDR0255, 202210, 6401200, 900, AD8603, AD8603E, D2067, E12771008, 87099, X21532, BD1055, 102067, 2067, 2067R, 2067DGS, 8844003, 78844003, 36547035, 177255 |
| PRONTO | BD8821 |
| RAYBESTOS | 2067R |
| WAGNER | BD60292 |
CENTRIC 123.66003 Fits Vehicles
- GMC K15/K1500 Suburban (1971-1974)
- GMC G25/G2500 Van (1971)
- GMC K15/K1500 Pickup (1971-1974)
- GMC Jimmy (1971-1973)
- Chevrolet K10 Suburban (1971-1974)
- Chevrolet K10 Pickup (1971-1974)
- Chevrolet G20 Van (1971)
- Chevrolet Blazer (1971-1974)
- GMC K15 (1975)
- Chevrolet K10 (1975)
- Chevrolet K5 Blazer (1975)
