Name: Centric 123.65033 C-Tek Standard Brake Drum
SKU: 12365033
Price: 58.49 USD
Availability: InStock

CENTRIC part description

Product Description

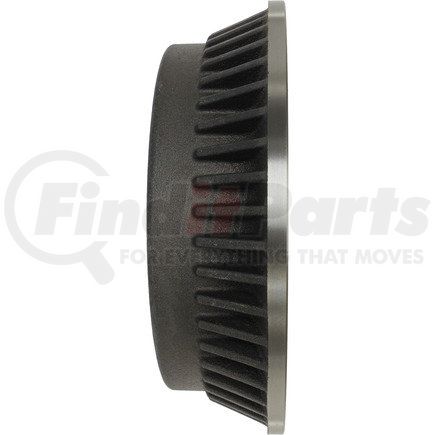

C-Tek Standard Brake Drum

Features & Benefits

Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

Product Attributes

Weight [cntrc] Kgs	11.091
Weight [cntrc] Lbs	24.400
Mounting Type [cntrc]	Floating
Bolt Circle Diameter [cntrc] Mm	114.300
Bolt Circle Diameter [cntrc] In	4.500
Hub Hole / Register [cntrc] Mm	74.168
Hub Hole / Register [cntrc] In	2.920
Height [cntrc] Mm	87.376
Height [cntrc] In	3.440
Friction Surface Width [cntrc] Mm	68.072
Friction Surface Width [cntrc] In	2.680
Product Grade [cntrc]	Standard
Maximum Brake Diameter (Discard)	251.500 MM
Maximum Brake Diameter (Discard)	9.902 IN
Bolt Hole Quantity	5
Outside Diameter	325.120 MM
Outside Diameter	12.800 IN
Outer Cooling Fins	Yes
Mounting Hole Diameter	12.700 MM
Mounting Hole Diameter	0.500 IN
Nominal Drum Diameter	250.000 MM
Nominal Drum Diameter	9.843 IN

Additional Information

Harmonized Tariff Code (HTS)	8708305030
NAFTA Preference Criterion Code	B
Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8708300050
UPC	805890052845

Part Interchanges

CENTRIC 123.65033 Cross Reference

We have 6 alternatives for the 123.65033 by CENTRIC:

Fits Vehicles

Nissan Quest (1993-2002)
Mercury Villager (1993-2002)
