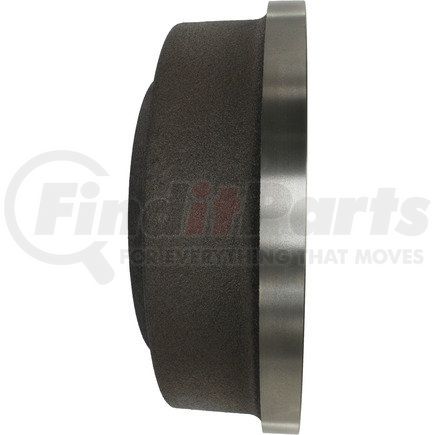

Name: Centric 123.65032 C-Tek Standard Brake Drum
SKU: 12365032
Price: 73.99 USD
Availability: InStock

CENTRIC part description

Product Description

C-Tek Standard Brake Drum

Features & Benefits

Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

Product Attributes

Weight [cntrc] Kgs	14.773
Weight [cntrc] Lbs	32.500
Mounting Type [cntrc]	Floating
Bolt Circle Diameter [cntrc] Mm	165.100
Bolt Circle Diameter [cntrc] In	6.500
Hub Hole / Register [cntrc] Mm	119.380
Hub Hole / Register [cntrc] In	4.700
Height [cntrc] Mm	124.460
Height [cntrc] In	4.900
Friction Surface Width [cntrc] Mm	88.392
Friction Surface Width [cntrc] In	3.480
Product Grade [cntrc]	Standard
Maximum Brake Diameter (Discard)	307.100 MM
Maximum Brake Diameter (Discard)	12.090 IN
Bolt Hole Quantity	8
Outside Diameter	357.124 MM
Outside Diameter	14.060 IN
Outer Cooling Fins	No
Mounting Hole Diameter	16.510 MM
Mounting Hole Diameter	0.650 IN
Nominal Drum Diameter	304.800 MM
Nominal Drum Diameter	12.000 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708300050
Harmonized Tariff Code (HTS)	8708305030
NAFTA Preference Criterion Code	B
Country of Origin (Primary)	CN
UPC	805890052838

Part Interchanges

CENTRIC 123.65032 Cross Reference

We have 7 alternatives for the 123.65032 by CENTRIC:

Fits Vehicles

Ford F-350 (1983)
Ford F-250 (1983)
Ford E-250 Econoline (1992-1994)
